ABH 0128 Floor Mount Pivot Set, Center Hung
$118.30
Usually Ships: 3-5 Business Days- For doors up to 250 lbs.
- Maximum door size – 42″ x 102″
- Meets or exceeds ANSI C07032
Product Overview

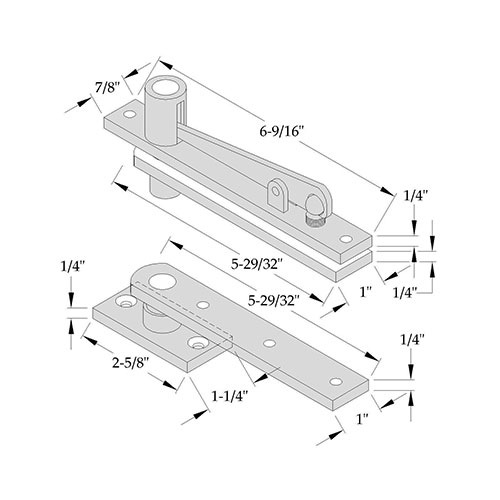

ABH 0128 Pivot Set – Center Hung
- Non-Handed
- Pivot set is centered into the door thickness
- Maximum door load 250 lbs.
- Maximum door size – 42″ x 102″
- Average weight per unit = 2.5 lbs
- Meets or exceeds ANSI C07032
Includes:
- 0320 Top Pivot: Frame leaf mortises into header, Door leaf mortises into top of door
- 0128 Bottom Pivot: Bottom leaf mortises on top of finished floor, Door leaf mortises into bottom of door
| Brand | |
|---|---|
| Hand | Non-handed |
| Door Weight | up to 250 lbs. |
| Compliance | Meets or exceeds ANSI C07032 |
| Usage | Standard Duty |
| Pivot Type | Center Hung Pivots |
| Finishes | US32D (630) Satin Stainless Steel |
