Product Overview

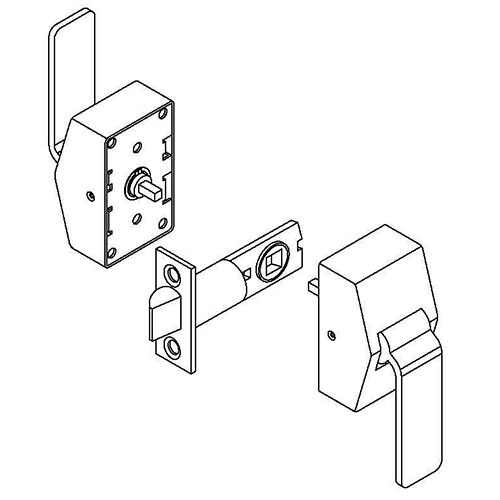

ABH 6000 Series Push/Pull Hospital Latch
Cylindrical latch application solution for commercial and institutional settings
- Cylindrical latch application – passage function
- 1-3/4″ standard door thickness
- Meets ADA requirements
- Trim is mounted using four thru-bolts for maximum stability
- One continuous spring provides a smoother operation and an extended life for the unit
- Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
- Handles can be mounted up or down by simply rotating trim 180°
- UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4’0″ x 8’0″
- 1/2″ Latch Bolt Throw
Models: 602A, 602T, 603A, 603T, 605A, 605T
| Brand | |
|---|---|
| Finishes | US32D (630) Satin Stainless Steel |
| Backset | 2-3/4", 3-3/4", 5" |
| Strike | 2-3/4" T-Strike, 4-7/8" ASA Strike |
| Function | Passage |
| Latch | 1/2" throw – 1-1/8" x 2-1/4" face |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
