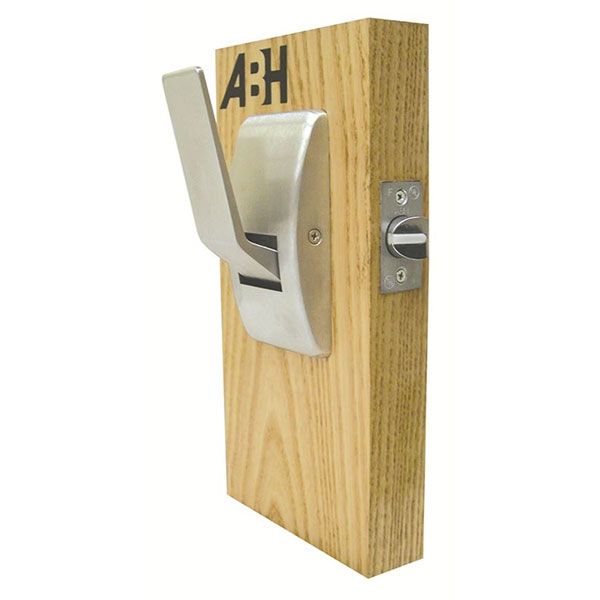

ABH 6800Q Series Quiet Low Profile Push/Pull Cylindrical Hospital Latch

ABH 6800Q Series Quiet Low Profile Cylindrical Hospital Latch, Zero Noise Gain

Cylindrical latch application solution for commercial and institutional settings

• No Noise – Zero level ambient noise gain (zero decibels during push and pull action)
• Cylindrical latch application – passage function
• Cover projection 7/8″, handle projection 2-5/8″
• Comes standard with Round Cover (suffix “RC”)
• 1-3/4″ standard door thickness
• Meets ADA requirements
• Trim is mounted using four thru-bolts for maximum stability
• Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
• Linear acting cam which provides for a smoother operating unit
• One continuous spring provides a smoother operation and an extended life for the unit
• UL Listed for use on door fire rated 90 minutes or less, up to 4’0″ x 8’0″
• 1/2″ Latch Bolt Throw
• US32D Satin Stainless Steel finish

Models: 6811Q-2-A-US32D, 6811Q-5-A-US32D, 6811Q-2-T-US32D, 6811Q-5-T-US32D, 6812Q-2-A-US32D, 6812Q-5-A-US32D, 6812Q-2-T-US32D, 6812Q-5-T-US32D, 6813Q-2-A-US32D, 6813Q-5-A-US32D, 6813Q-2-T-US32D, 6813Q-5-T-US32D, 6814Q-2-A-US32D, 6814Q-5-A-US32D, 6814Q-2-T-US32D, 6814Q-5-T-US32D, 6816Q-2-A-US32D, 6816Q-5-A-US32D, 6816Q-2-T-US32D, 6816Q-5-T-US32D, 6817Q-2-A-US32D, 6817Q-5-A-US32D, 6817Q-2-T-US32D, 6817Q-5-T-US32D, 6818Q-2-A-US32D, 6818Q-5-A-US32D, 6818Q-2-T-US32D, 6818Q-5-T-US32D, 6819Q-2-A-US32D, 6819Q-5-A-US32D, 6819Q-2-T-US32D, 6819Q-5-T-US32D
