ABH A540HD Heavy Duty Half Surface Continuous Geared Hinge

Usually Ships: 3-5 Business Days

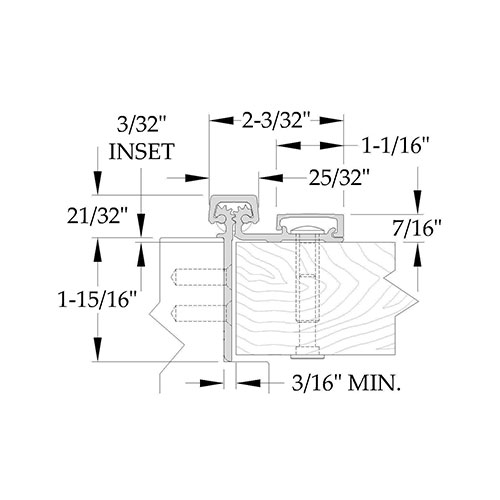

  • 3/32″ door inset
  • Fire-rated up to 90-minutes
  • Supports weights up to 450lbs

Available Options:

ABH A540HD Aluminum Continuous Gear Hinges Half Surface

  • BHMA Grade 1
  • Half Surface, Heavy Duty
  • 3/32″ Door Inset
  • 48″ door width maximum
  • 450 lbs. door weight maximum
  • Fasteners: 12-24 X 3/4″ undercut self drilling, thread-forming tek machine screws for frame and 1/4-20 sex bolts and shoulder bolts for door
  • Standard Lengths: 79″, 83″, 85″, *95″
  • Approved for use on metal swinging type fire doors rated up to and including 90 minutes
  • Approved for use on wood swinging type fire doors rated up to and including 60 minutes

*Oversize handling fee applies (added at checkout)

Brand

Finish

Anodized Aluminum, Black, Dark Bronze

Length

79" (for 6'8" door), 83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)

Material

Aluminum

ANSI/BHMA Standard

ANSI/BHMA A156.26-2017 Certified

Fire Rating

Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes

Continuous Hinge Type

Half Surface

Usage

Heavy Duty

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
