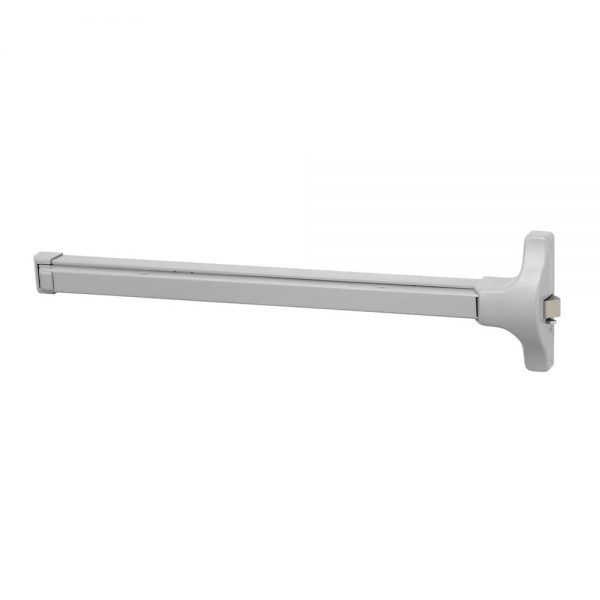

Accentra (Formerly Yale) 2100F Fire-Rated Rim Exit Device

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 01, Exit Only (trim sold separately)
  • UL Listed Fire Exit Hardware, 3 Hour Rated

Available Options:

Clear

Accentra (formerly Yale) 2100F Series Economy Rim Exit Device, Fire-Rated, Exit Only

Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100F Series Exit Device is the right choice for meeting the rigors of everyday use. In addition to traditional painted finishes, the 2100 Series is available in an attractive satin stainless steel finish for use where aesthetics are also important. The 2100 Series is a perfect fit for both back of house and prominent openings in office buildings, retail, and a long list of other facilities that require both performance and style.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Tough: Sturdy construction is ideal for meeting the rigors of demanding industry environments
  • Economical: Works for many building projects, regardless of budget
  • Strong & Durable: ANSI/BHMA Grade 1 Certification ensures long life and reliability
  • UL/cUL Listed: GXHX/GXHX7 – Fire exit hardware (F) (4′ x 8′ single, 8′ x 8′ pairs, 3 hr.)
Brand

Length

36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors)

Finishes

630 Satin Stainless Steel, 689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated), BSP Black Suede Powder Coat, WSP White Suede Powder Coat

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Usage

Medium Duty

Stile Type

Wide (Standard)

Fire Rating

UL/cUL listed up to 3 Hours

Handing

Non Handed – Completely Reversible

Minimum Stile Width

4-1/2"

Projections

2-1/2" active, 1-3/4" dogged

Latchbolt

3/4" deadlocking stainless steel pullman-type

Strike

757F

Dogging Feature

None

Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware

Door Applications

1-3/4" Metal, wood or composite doors

Warranty

3 Year
