Accentra (Formerly Yale) 4722LN AU Corridor Lever Lockset

Usually Ships: 20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ANSI Function F90, Corridor Lock
  • ADA compliant, 3-hour fire-rated

Available Options:

Product Overview

Accentra (formerly Yale) AU4722LN ANSI/BHMA Grade 1 Certified Cylindrical Lock, Corridor Function, Augusta Lever

Accentra 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price.

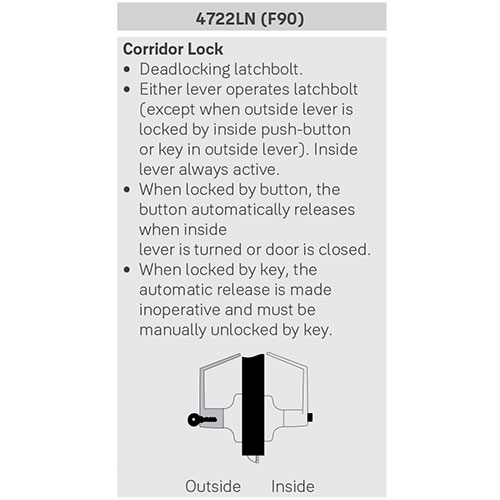

ANSI Function F90 – Deadlocking latchbolt. Either lever operates latchbolt (except when outside lever is locked by inside push-button or key in outside lever). Inside lever always active. When locked by button, the button automatically releases when inside lever is turned or door is closed. When locked by key, the automatic release is made inoperative and must be manually unlocked by key.

  • Freewheeling Trim
  • Versatile: Field reversible handing
  • Economical: Priced affordably to suit projects of all budgets
  • Secure: Quality security from a trusted brand for over 170 years
  • Strong & Reliable: ANSI/BHMA Grade 1 certified for long life and reliability

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613e Dark Oxidized Satin Bronze equivalent, 625 Bright Chrome, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function

Corridor
ANSI/BHMA Standard

Certified ANSI/BHMA A156.2, Series 4000 Grade 1
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Accentra/Yale E1R (Para) Keyway, Schlage C Keyway
Backset

2-3/4"
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non-Handed
Lever Design

AU (Augusta)
Door Thickness

1-3/8" to 1-3/4"
Fire Rating

UL-cUL fire rated up to 3 hours
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Usage

Heavy Duty
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Warranty

5 Year
