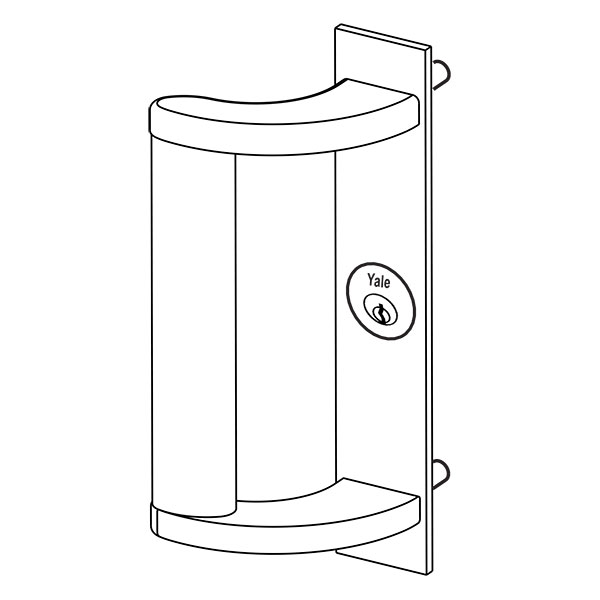

Accentra (Formerly Yale) 481F/483F Exit Device Offset Night Latch Pull Trim

Usually Ships: 20-30 Business Days
  • For use with Accentra/Yale 7000/6000 narrow stile exit devices
  • ANSI Function: 03 – Night latch access by key
  • Requires rim cylinder (sold separately)

Available Options:

  • Total

Product Overview

Accentra (formerly Yale) 480F Series Offset Pull Trim (481F / 483F) for 7000/6000 Exit Devices, Night Latch Access by Key

Accentra offers a proven selection of hard-working exit devices and trim.

  • ANSI Function: 03 – Night latch access by key
  • 1-3/4″ door standard
  • 2-13/32″ projection
  • Plate Dimensions: 1-3/4″ x L x 3/16″  L = Overall plate length is 2-1/4″ longer than pull dimension
  • Pull Dimensions: 481F trim has a 7-1/4″ pull length on centers which thrubolts to exit device for strength. 483F trim has a 9″ pull length on centers and is not to allow pulls of different lengths to be utilized.
  • Cylinders not included (sold separately)
  • *For use with the following devices: 6200ED, 6210ED(F), 6220EDM(F), 6250ED(F), 7200, 7210, 7220, 7250, 7200M(F), 7210M(F), 7220M(F), 7250M(F)

*Not recommended for use with vertical rod exit devices

Brand

Finishes

613e Dark Oxidized Satin Bronze equivalent, 630 Satin Stainless Steel, BSP Black Suede Powder Coat
Function

Night Latch Pull
Cylinder

Requires rim cylinder (sold separately)
Usage

Heavy Duty
Handing

Handed (LHR – Left Hand Reverse or RHR – Right Hand Reverse)
Warranty

1 Year
