Accentra (Formerly Yale) 6170F LBR Fire-Rated Surface Vertical Rod Exit Device (Less Bottom Rod)

Usually Ships: 20-30 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified

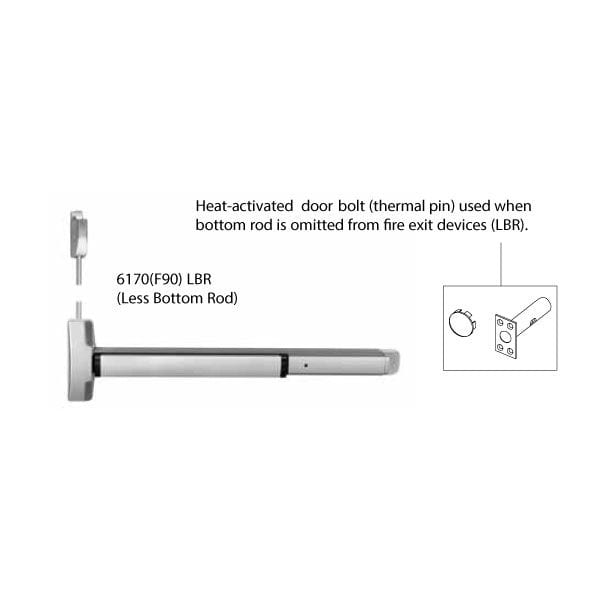

  • LBR (less bottom rod) with auxiliary fire bolt
  • Fire-rated up to 90 minutes

Available Options:

Product Overview

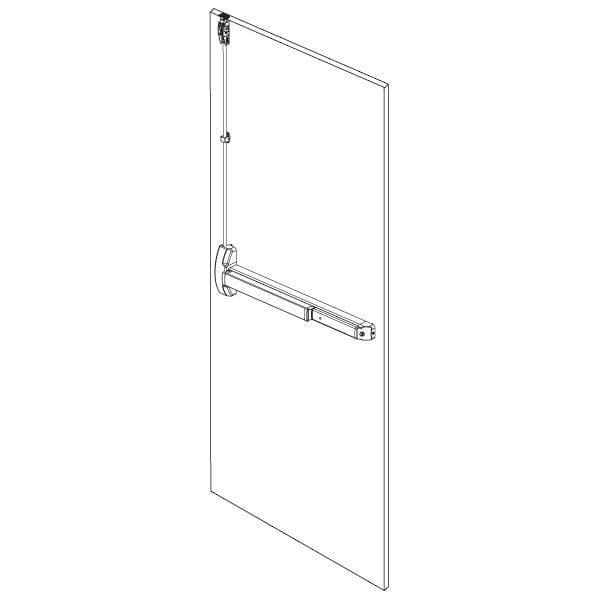

Accentra (formerly Yale) 6000 Series Wide Stile Surface Vertical Rod Exit Device, 6170F LBR, Fire-Rated, Less Bottom Rod, Exit Only, 7ft. Height Doors

With its robust, modern design and smooth, quiet operation, the 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Smooth, Quiet Operation: Unique design provides noise reduction and smooth operation of the touch bar
  • Stylish: Attractive, modern design blends aluminum rail with architectural finishes
  • Strong and Reliable: ANSI/BHMA Grade 1 certified for long life
  • Secure: Multiple security features provide added resistance against vandalism and authorized entry
Brand

Finishes

613e Dark Oxidized Satin Bronze equivalent, 630 Satin Stainless Steel, BSP Black Suede Powder Coat
Length

36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors)
Door Height

up to 7'0"
Device Type

LBR (Less Bottom Rod) Surface Rod Device
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Heavy Duty
Fire Rating

UL Listed up to 90 Minutes
Handing

Non Handed – Completely Reversible
Door Width Range

30" to 36"
Stile Type

Wide (Standard)
Minimum Stile Width

4-1/2"
Projections

3-1/4" active, 2-1/2" dogged
Latchbolt

top: 3/4" pullman style with auto deadlatching
Strikes

Top: 726
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
Warranty

10 Years
