Product Overview
Accentra (formerly Yale) 7100/7100F Rim Exit Device, AU-NTT613-NR-626 nexTouch PushButton Rim Exit Device Trim
Accentra 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation, and aesthetics. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building. When the beauty of your facility matters almost as much as life safety.
The 7100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood, or composite materials. Designed for application in high-use areas.
- Steel chassis and heavy-duty components for superior strength, robustness and lower maintenance
- Electroplated ferrous components provide corrosion resistance
- Sleek design with clean lines offers a modern look
- UL Listed for panic hardware
- Windstorm certified (refer to local codes)
- ISO 9001: Designed and manufactured under a certified ISO 9001 quality system

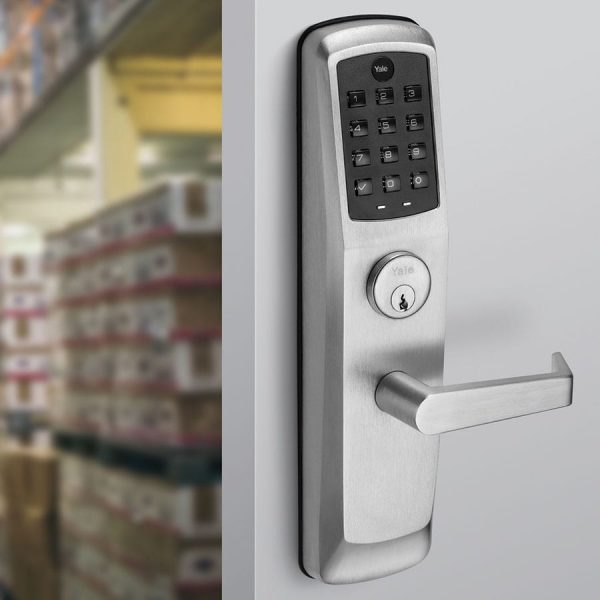

AU-NTT613-NR Keypad Lever Trim
- Standalone Electronic Rim Exit Device Trim
- Up to 500 Unique PIN Codes
- Includes 2153 cylinder
- 626 satin chrome lever (device is 630 satin stainless steel finish)
- Easily Re-handed in the field – Shipped as RHR
- Bolt retracted by pushbar on interior and lever on outside except when outside lever is locked.
- Mechanical Key Override (key override unlocks the outside lever only)
- 9V battery power backup prevents lockout even if the batteries fail
- Easy Traffic Control: Engineered to provide an easy-to-use access control solution to protect your facility and personnel
- Key-free Convenience: Reduces investment and maintenance costs associated with managing keys
| Brand | |
|---|---|
| Finishes | 630 Stainless Steel Device w/ 626 Satin Chrome Lever |
| Length | 36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors) |
| Dogging Feature | Hex key dogging standard on non-fired-rated devices |
| Lever Design | AU (Augusta) |
| Cylinder | 2153 Accentra/Yale E1R Para Keyway |
| Power | Battery-operated, with low power indicator, or hard-wired (9 Volt external power supply) option. Blinking designation signals internal 4 AA alkaline batteries are low. |
| Stile Type | Wide (Standard) |
| Minimum Stile Width | 4-1/2" |
| Fire Rating | 7100: Non-Rated – 7100F: UL/cUL Listed for use on fire doors up to 3 hours |
| Usage | Heavy Duty |
| ANSI/BHMA Standard | Certified ANSI/BHMA A156.3, Grade 1 |
| Handing | Completely Reversible |
| Latchbolt | 3/4" deadlocking stainless steel pullman-type |
| Strike | 757F, 793 optional (double door application, panic only) |
| Projections | 3-1/4" active, 2-3/4" dogged |
| Fasteners | Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
| Door Applications | 1-3/4" Metal, wood or composite doors |
