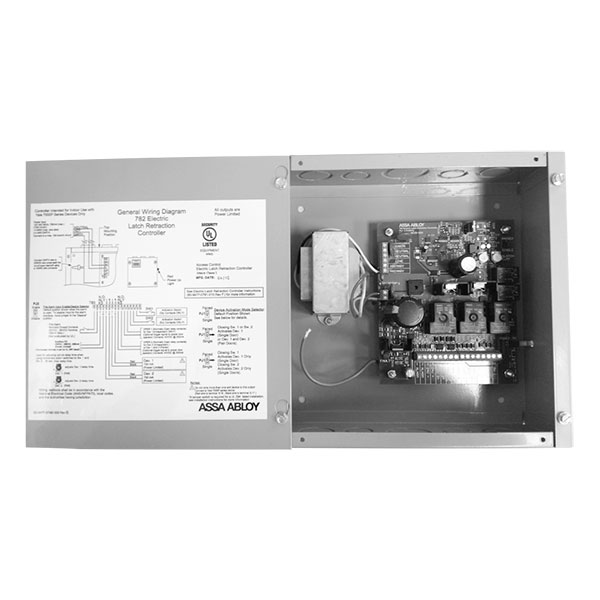

Accentra (Formerly Yale) 782 Electric Latch Retraction Controller Power Supply

Accentra (formerly Yale) 782 Controller Power Supply for One or Two Electric Latch Retraction Exit Devices

Designed to control one or two electric latch retraction “P” exit devices. Equipped with two 20-second timers which can operate the exit devices together or independently. Requires a momentary or timed, dry contact input and can be interfaced with access control systems, automatic door operators, handsfree actuation devices, “blow open” type scenarios and has provisions for N/C fire alarm systems.

Note: The 782 is required for use with the “P” latch retraction option. Using any other power supply with the “P” option voids the warranty of the device.

Features

• Two control inputs. Accepts normally closed dry contacts for device activation from a key switch, push button, access control or fire alarm system.
• Two normally open control outputs for automatic door operators
• Two “P” device outputs
• Fire Alarm Interface input
• 24VDC output for audible or LEDS .25 AMP

Certifications

• UL 294
• UL CLASS 2 outputs

Electrical

• 120 VAC 60Hz 750mA (max.)
• 38-42 VDC output
• 10 amp inrush

Applications

• “P” Electric Latch Retraction Option
