AUR-8847FL-626
Yale-8847
AUR-8847FL-626
Yale-8847

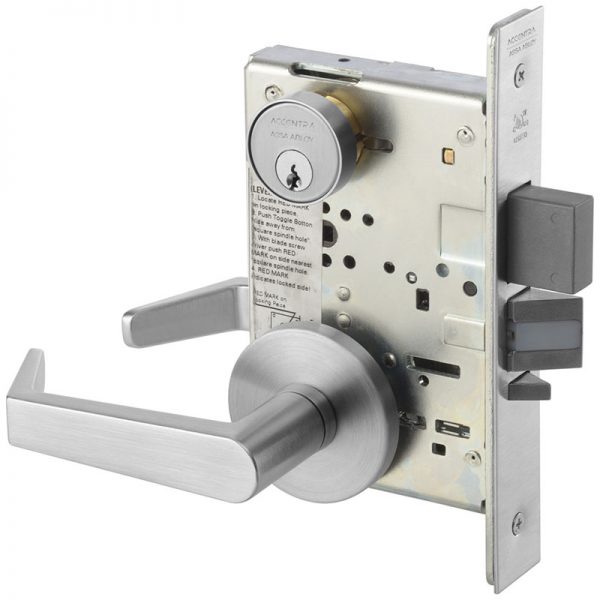

Accentra (Formerly Yale) AUR 8847FL Apartment Corridor/Entry Mortise Lock with Augusta Lever, Standard Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • ANSI Function: F20 – Apartment Entry
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Product Overview

Accentra (formerly Yale) AUR8847FL ANSI/BHMA Grade 1 Certified Mortise Lock, Apartment Corridor/Entry Function, Sectional Augusta AUR Lever/Rose Trim

Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

ANSI F20 – Apartment Entry – Latchbolt retracted by lever either side, except when outside lever is locked by stopwork activator. Deadbolt operated by key outside, thumbturn inside. When outside lever is locked, latchbolt and deadbolt are operated by key outside. When deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever automatically retracts latchbolt and deadbolt with outside lever remaining locked. Deadlocking latchbolt.

Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam

  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat
Cylinder

2153 (Para Keyway) or 2553 (Schlage C Keyway) 1-1/8" Mortise Cylinder w/ 2160 Cam
Lock Function

Apartment Entry
ANSI Function

F20
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL and cUL Listed – up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Latchbolt

3/4" throw, stainless steel one-piece anti-friction
Deadbolt

Stainless steel, 1” throw
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case

wrought steel, zinc dichromated
Hubs

3/8" solid steel, fine-blanked and heat treated for additional strength
Armored Front

8" x 1-1/4"
Door Thickness

1-3/4"
Lever Design

AUR (Augusta)
Warranty

10 Years
Accentra/Yale 8800 Installation Instructions
