Accentra (Formerly Yale) AUCN 8860FL Room Door (Entrance or Storeroom) Mortise Lock with Augusta Lever, CN Escutcheon

Usually Ships: 20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • ANSI Function: F21 – Room Door Lock
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Product Overview

Accentra (formerly Yale) AUCN8860FL ANSI/BHMA Grade 1 Certified Mortise Lock, Room Door (Entrance or Storeroom) Function, Augusta Camden AUCN Escutcheon Lever Trim

Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

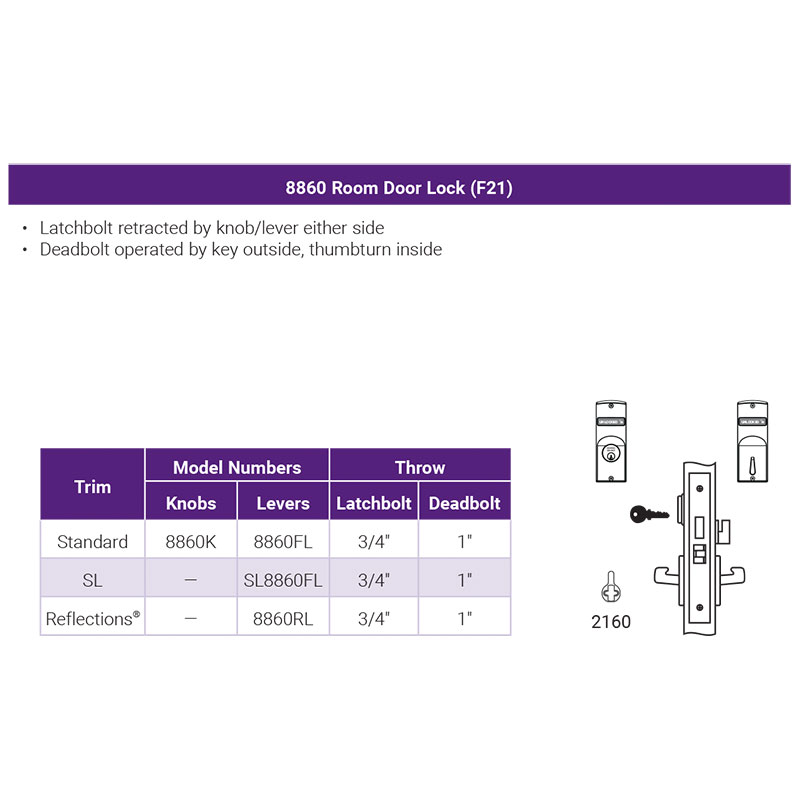

ANSI F21– Room Door Lock

  • Latchbolt retracted by knob/lever either side
  • Deadbolt operated by key outside, thumbturn inside

Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam

  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing

codes

Brand

Finishes

613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat
Cylinder

2153 (Para Keyway) or 2553 (Schlage C Keyway) 1-1/8" Mortise Cylinder w/ 2160 Cam
Lock Function

Entry (Entrance), Storeroom
ANSI Function

F21
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL and cUL Listed – up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Latchbolt

3/4" throw, stainless steel one-piece anti-friction
Deadbolt

Stainless steel, 1” throw
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case

wrought steel, zinc dichromated
Hubs

3/8" solid steel, fine-blanked and heat treated for additional strength
Armored Front

8" x 1-1/4"
Door Thickness

1-3/4"
Lever Design

AUCN (Augusta Camden)
Warranty

10 Years
Accentra/Yale 8800 Installation Instructions
