Accentra (Formerly Yale) AUR 8805FL MELR Storeroom Mortise Lock with Motorized Electric Latch Retraction, Augusta Lever, Standard Rose

Accentra (formerly Yale) AUR x 8805FL x MELR – ANSI/BHMA Grade 1 Certified Mortise Lock, Motorized Electric Latch Retraction, Sectional Augusta AUR Lever/Rose Trim

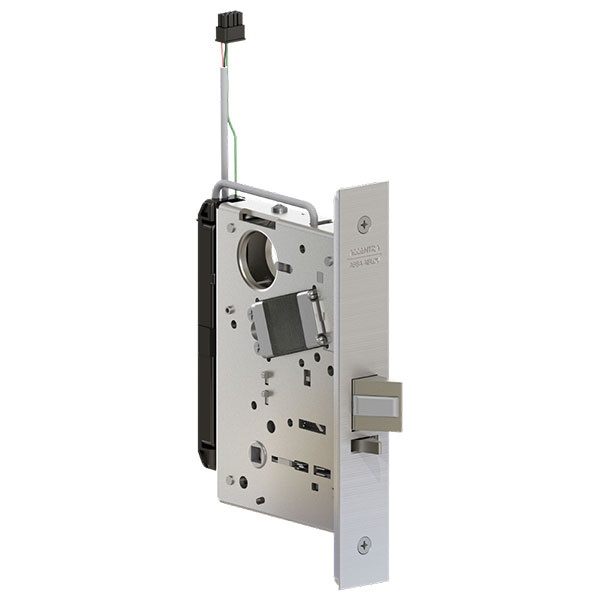

8800 Series with Motorized Electric Latch Retraction

The Motorized Electric Latch Retraction (MELR) mortise lock is designed for commercial, institutional, and industrial facilities for access control of openings where code compliance, dependable operation and resistance to physical abuse is required.

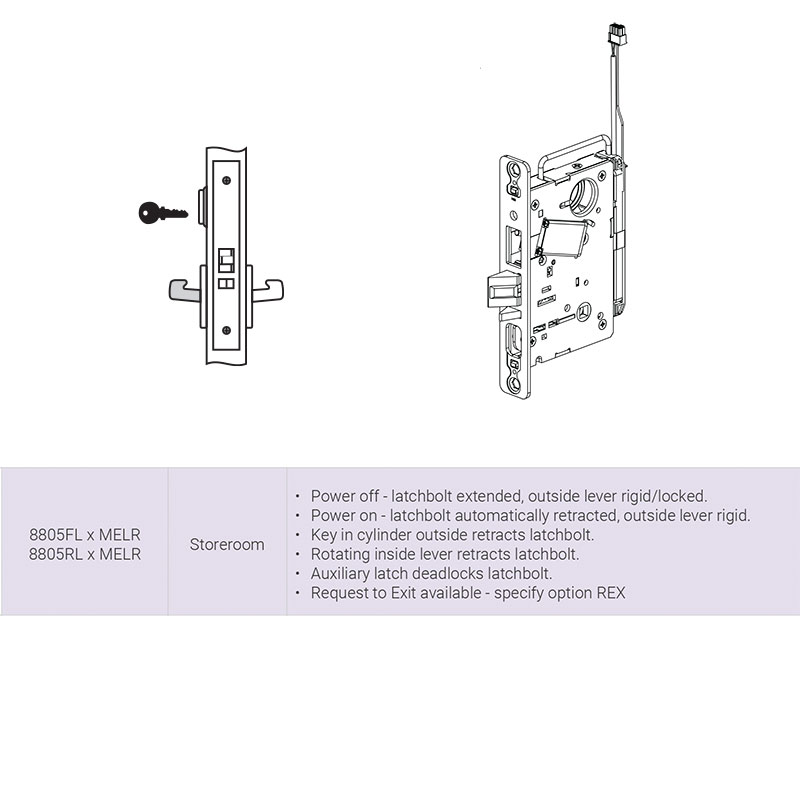

8805FL x MELR (Storeroom) – Power off – latchbolt extended, outside lever rigid/locked. Power on – latchbolt automatically retracted, outside lever rigid. Rotating inside lever retracts latchbolt. Auxiliary latch deadlocks latchbolt. Request to Exit available – specify option REX

• Latchbolt retracts in ½ of a second with applied power – Removing power allows latch to be projected back to the extended position
• Allows push/pull operation, satisfying both in-swing and outswing doors.
• Access controlled via an access control system or physical key override
• Compatible with any access control application using standard mortise locks
• Request to Exit available as an option
• Motorized latch retraction and spring back extension provide quiet and seamless operation
• Smooth latch retraction with applied pressure of over 50lbs to the door
• Environmentally friendly with low power requirements
• Field reversible for easy handing adjustments
• Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam

Electrical Specifications

• Voltage: 24VDC (+10% / -15%)
• Operating current: 700mA
• Hold Current: 50mA

Certifications

• ANSI/BHMA A156.13 Grade 1 certified for superior performance
• ANSI/BHMA A156.25 compliant
• UL/cUL Fire Rated for 3-Hour Doors
• UL294/UCL60839-11-1 Listed
• Windstorm certified (refer to local codes)
