Product Overview
Accentra (formerly Yale) AUR8818-2FL ANSI/BHMA Grade 1 Certified Mortise Lock, Classroom Security Intruder Function, Sectional Augusta AUR Lever/Rose Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

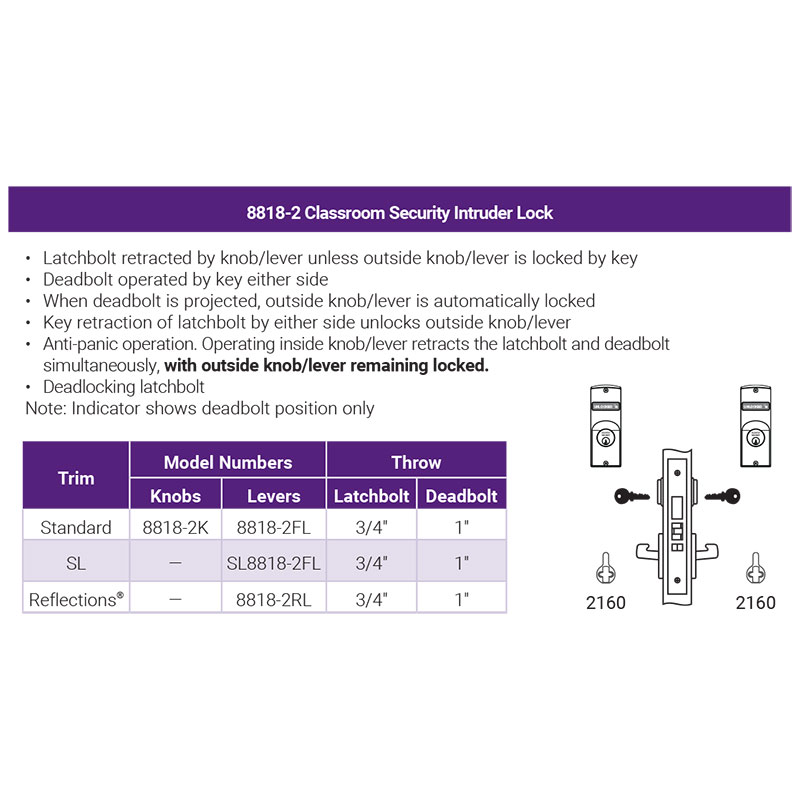

Classroom Security Intruder Lock
- Latchbolt retracted by knob/lever unless outside knob/lever is locked by key
- Deadbolt operated by key either side
- When deadbolt is projected, outside knob/lever is automatically locked
- Key retraction of latchbolt by either side unlocks outside knob/lever
- Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, with outside knob/lever remaining locked.
- Deadlocking latchbolt
Requires 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4″
- Latchbolt: 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Reversibility: Field reversible handing
| Brand | |
|---|---|
| Finishes | 613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat |
| Cylinder | (2) 2153 (Para Keyway) or (2) 2553 (Schlage C Keyway) 1-1/8" Mortise Cylinder w/ 2160 Cam |
| Lock Function | Classroom Security, Intruder |
| ANSI Function | F34 |
| Usage | Heavy Duty |
| ANSI/BHMA Standard | Certified ANSI/BHMA A156.13, Series 1000 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | UL and cUL Listed – up to 3 Hours |
| Handing | Right hand is standard; Reversible in the field |
| Backset | 2-3/4" |
| Latchbolt | 3/4" throw, stainless steel one-piece anti-friction |
| Strike | 4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Case | wrought steel, zinc dichromated |
| Hubs | 3/8" solid steel, fine-blanked and heat treated for additional strength |
| Armored Front | 8" x 1-1/4" |
| Door Thickness | 1-3/4" |
| Lever Design | AUR (Augusta) |
| Warranty | 10 Years |
