Accentra (Formerly Yale) AUR 8835FL Exit with Thumbturn Mortise Lock, Augusta Lever, Standard Rose

Usually Ships: 20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • Exit Function
  • 3 Hour Fire-Rated

Available Options:

Product Overview

Accentra (formerly Yale) AUR8835FL ANSI/BHMA Grade 1 Certified Mortise Lock, Exit Function, Sectional Augusta AUR Lever/Rose Trim

Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

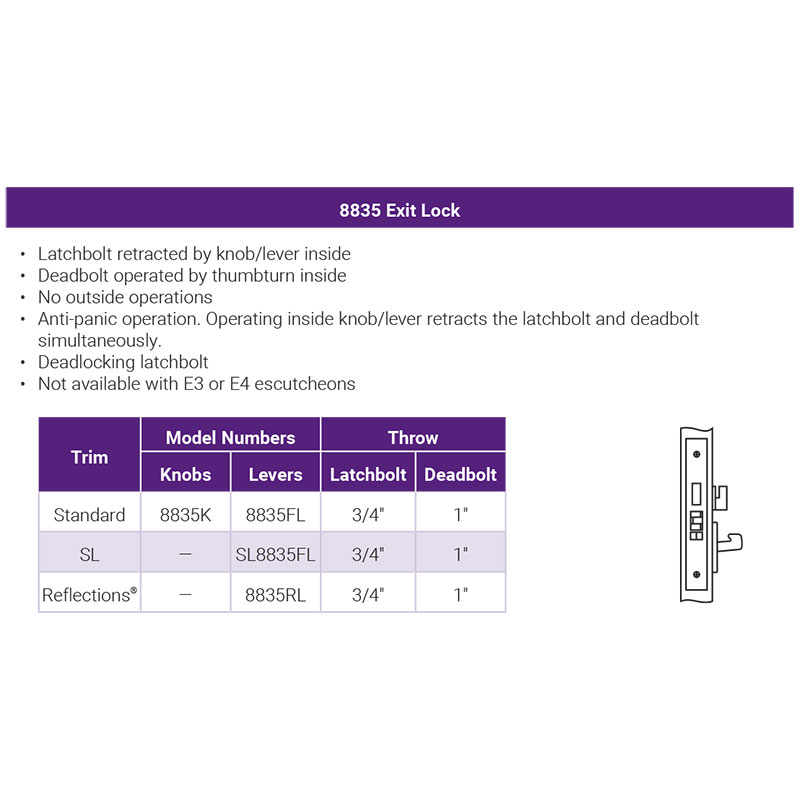

Exit Lock

  • Latchbolt retracted by knob/lever inside
  • Deadbolt operated by thumbturn inside
  • No outside operations
  • Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously.
  • Deadlocking latchbolt
  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function

Exit / Communicating
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL and cUL Listed – up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Latchbolt

3/4" throw, stainless steel one-piece anti-friction
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case

wrought steel, zinc dichromated
Hubs

3/8" solid steel, fine-blanked and heat treated for additional strength
Armored Front

8" x 1-1/4"
Door Thickness

1-3/4"
Lever Design

AUR (Augusta)
Warranty

10 Years
Accentra/Yale 8800 Installation Instructions
