Product Overview
Accentra (formerly Yale) AUR8862FL ANSI/BHMA Grade 1 Certified Mortise Lock, Privacy, Bedroom, or Bath Function, Double Indicator Inside and Outside, Sectional Augusta AUR Lever/Rose Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.
8800 Series indicators can be used in a variety of applications and are most commonly used to identify occupancy or display the locked/ unlocked status of a room.

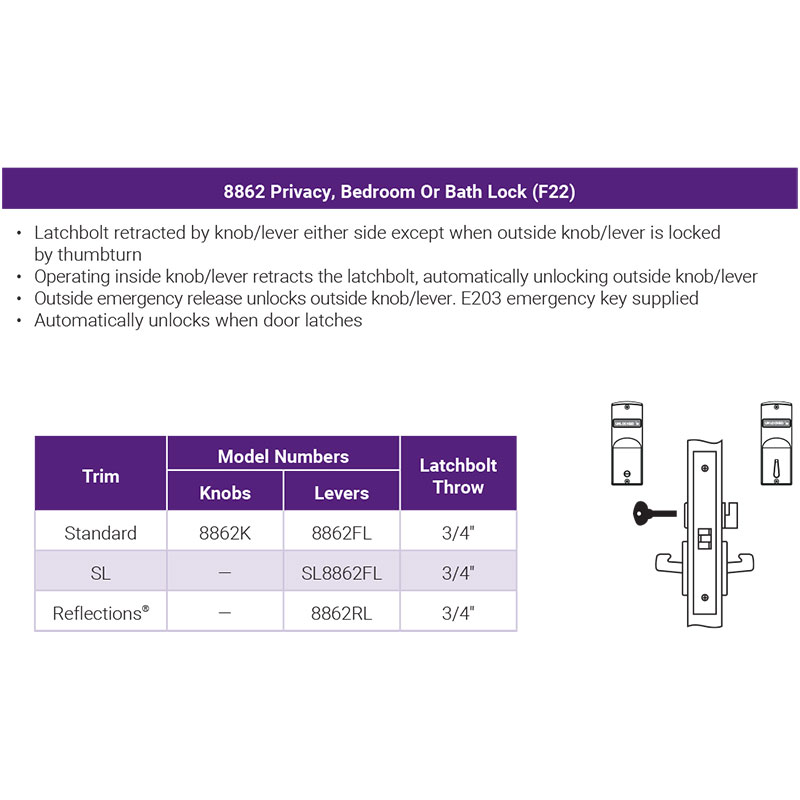

ANSI F22 – Privacy, Bedroom or Bath
- Latchbolt retracted by knob/lever either side except when outside knob/lever is locked by thumbturn
- Operating inside knob/lever retracts the latchbolt, automatically unlocking outside knob/lever
- Outside emergency release unlocks outside knob/lever. E203 emergency key supplied
- Automatically unlocks when door latches
Features
- Large viewing indicator window
- Patented curved design for viewing at multiple angles
- Highly reflective viewing window for increased safety
- Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL/cUL fire rated up to 3 hours
- Windstorm Certified (refer to local codes)
- 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Field reversible handing
Indicator Option Codes
- V21 Double Indicator (Vacant/Occupied, Green/Red Outside – Unlocked/Locked, Green/Red Inside)
- V54 Double Indicator (Vacant/Occupied, White/Red Outside – Unlocked/Locked, White/Red Inside)
Applications
- Restrooms
- Quiet rooms
- Nursing mother’s rooms
- Classroom doors
| Brand | |
|---|---|
| Finishes | 613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat |
| Lock Function | Privacy with Indicator |
| ANSI Function | F22 |
| Usage | Heavy Duty |
| ANSI/BHMA Standard | Certified ANSI/BHMA A156.13, Series 1000 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | UL and cUL Listed – up to 3 Hours |
| Handing | Right hand is standard; Reversible in the field |
| Backset | 2-3/4" |
| Latchbolt | 3/4" throw, stainless steel one-piece anti-friction |
| Strike | 4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Case | wrought steel, zinc dichromated |
| Hubs | 3/8" solid steel, fine-blanked and heat treated for additional strength |
| Armored Front | 8" x 1-1/4" |
| Door Thickness | 1-3/4" |
| Lever Design | AUR (Augusta) |
| Warranty | 10 Years |
