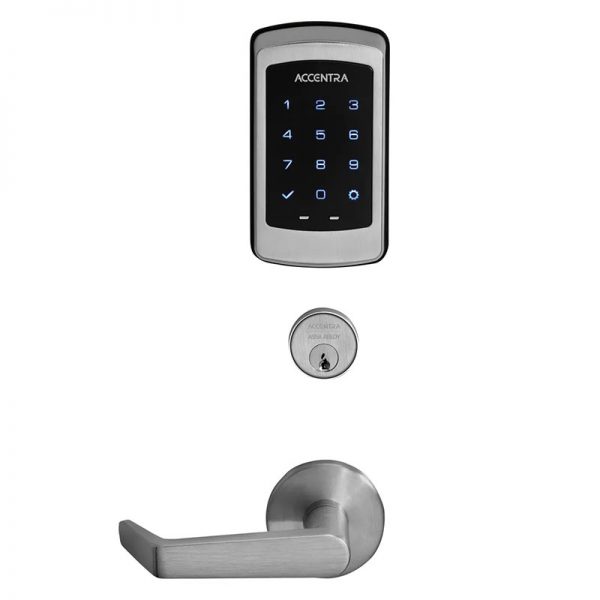

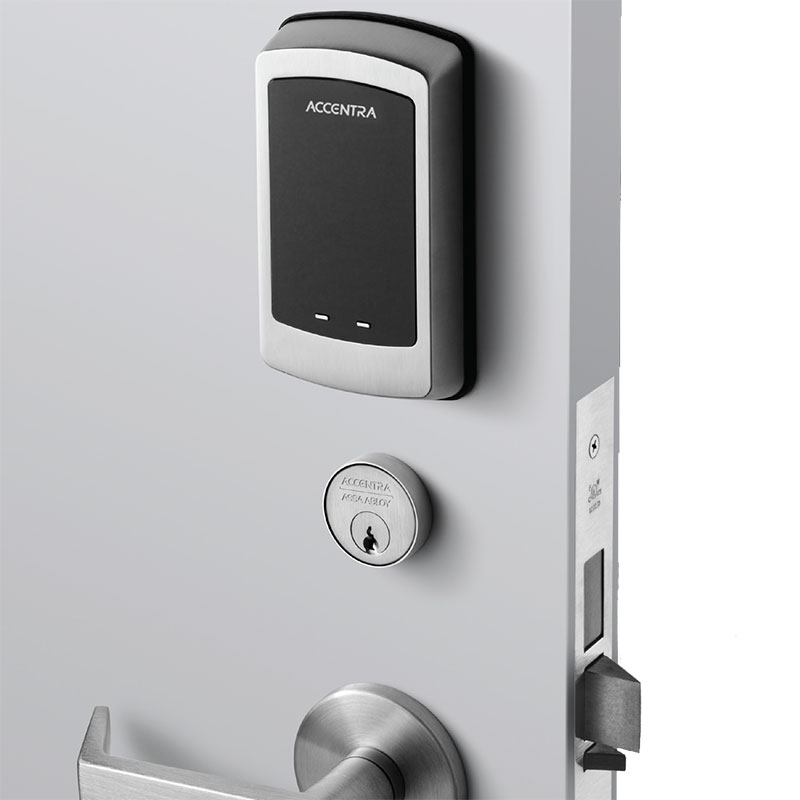

Accentra (Formerly Yale) AUR-NTM628-NR nexTouch Sectional Mortise Lock with Deadbolt and Capacitive Touchscreen, Augusta Lever

Usually Ships: 1-2 Business Days
  • Heavy Duty Grade-1, standalone electronic mortise lock
  • Capacitive touchscreen, cylinder override with thumbturn
  • Fits into a standard mortise door prep

Available Options:

Product Overview

Accentra (formerly Yale) Gen. 3 nexTouch™ NTM628 – Sectional Mortise Kock, Key Override, Capacitive Touchscreen, with Deadbolt

The ANSI/BHMA Grade 1 certified nexTouch Sectional Mortise Keypad Lock provides robust security to any commercial building.

Formerly known as AUR-NTM627-NR (Generation 2)
Formerly known as AUR-NTM625-NR (Generation 1)

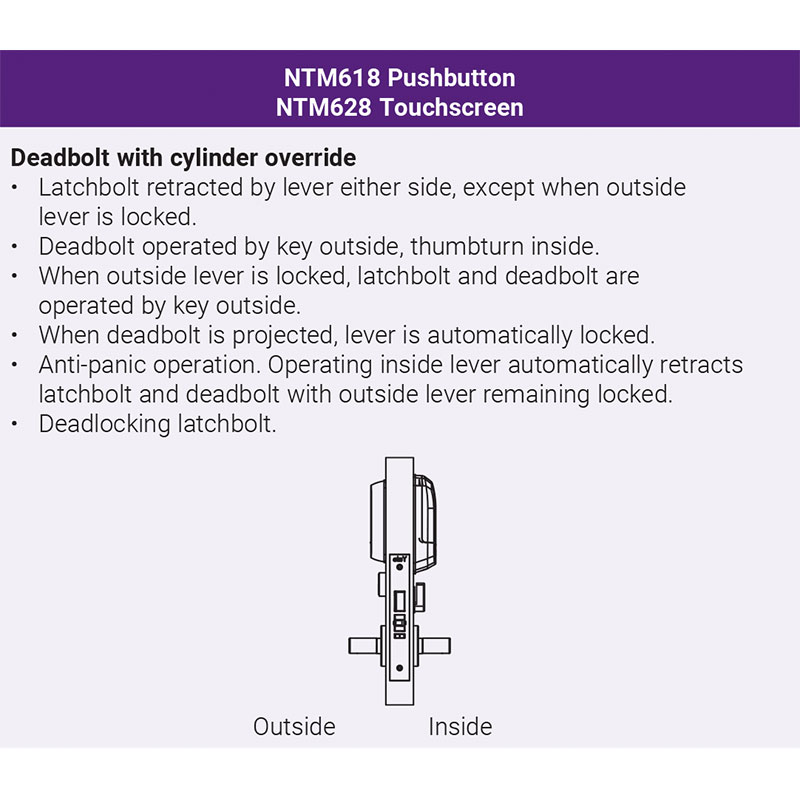

NTM628 Touchscreen Lock – Deadbolt with cylinder override: Latchbolt retracted by lever either side, except when outside lever is locked. Deadbolt operated by key outside, thumbturn inside. When outside lever is locked, latchbolt and deadbolt are operated by key outside. When deadbolt is projected, lever is automatically locked. Anti-panic operation. Operating inside lever automatically retracts latchbolt and deadbolt with outside lever remaining locked. Deadlocking latchbolt.

  • All the features of the original nexTouch keypad lock in an attractive mortise design
  • Field reversible handing
  • Weather resistant seal
  • UL/cUL Fire Listed for use on fire doors having a rating up to and including 3 hours
  • Lever design meets the accessibility guidelines of the Americans with Disabilities Act
  • Three-year limited warranty on the mechanical and electrical components and a one-year limited warranty on the finish
  • ANSI/BHMA A156.13, Series 1000, Grade 1
Brand

Finishes

626 Satin Chrome
Cylinder

2153 Accentra/Yale E1R Para Keyway, 2553 Schlage C Keyway
ANSI/BHMA Standard

Certified ANSI/BHMA Grade 1
Usage

Heavy Duty
Lock Function

Touchscreen Keypad
Handing

Completely Reversible
Fire Rating

UL Listed up to 3 Hours
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Power

AA alkaline batteries (included) with optional hardwire input f or 9VDC external power; 9V battery power backup on keypad
Reader Technology

NR: Keypad only, no radio
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Backset

2-3/4"
Lever Design

AUR (Augusta)
Door Thickness

1-3/4"
Warranty

3 Year Limited
nexTouch Keypad Access Sectional Mortise Lock Touchscreen and Push Button Installation and Programming Instructions
