Accentra (Formerly Yale) YA193 Mortise Lock Status Indicator Kit for Accentra/Yale 8800 Sectional Trim with Cointurn Emergency Override

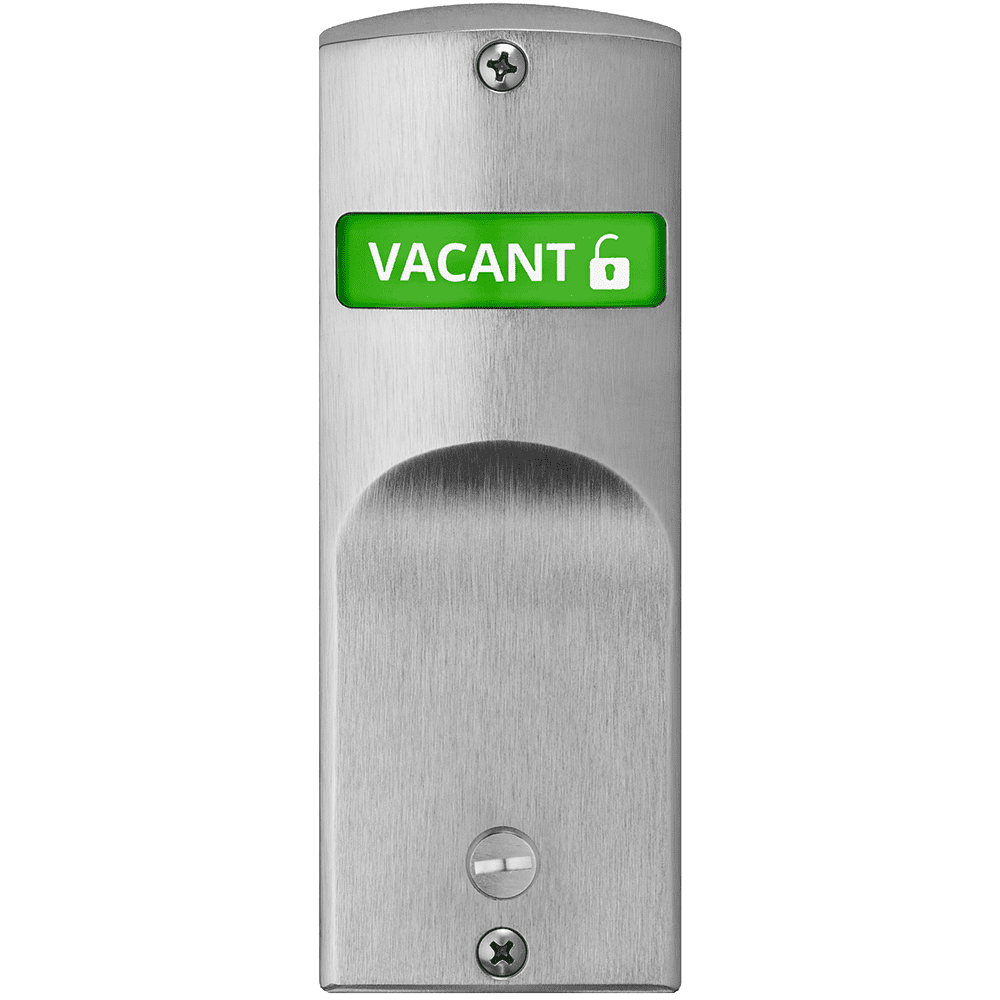

Accentra (formerly Yale) YA193 Outside Indicator Kit for Accentra/Yale 8800 Series Mortise Lock with Sectional Trim with Cointurn Emergency Override

The newly designed status indicator option for the ASSA ABLOY ACCENTRA™ 8800 Series mortise lock features an even more visible indicator window, made of reflective materials and able to be clearly viewed from 180°. Enjoy the ultimate in privacy assurance.

Each kit includes a single side indicator plate with mechanism, screw pack, plastic template, and instructions.

• For use with functions: 8802, 8820, 8827, 8862, 8864 (outside)
• Indicator location: Outside
• Largest viewing window available
• Patented curved window design
• Reflective coating on indicator panel
• Provides a lower cost solution to upgrading security and privacy
• Provides security and safety at a glance, visible at a distance
• Status indicator window is 25% larger than competition
• Ensures that the status indicator is clearly visible; Status indicator window has 180° viewing angle
• Increases the visibility of the indicator in low light conditions
• Suitable for multiple applications
• Field adjustable handing
• Exceeds strength and durability standards for high use and abuse applications
• ANSI/BHMA Grade 1 certified

Notes: When indicators are required on both sides of the door, 2 upgrade kits must be ordered, one kit for each side. Lock(s) not included.

Typical Applications

• Classroom doors
• Privacy rooms
• Nursing/new mother rooms
• Patient rooms
• Restrooms
• Meeting rooms
