Product Overview
Adams Rite 1000 Series Turns
The 1000 Series Turns are designed to operate Adams Rite MS1847® Deadlock and the 5017 Wood Door Deadlock.
Function:
1000 Turns are designed to operate Adams Rite MS®1847 Deadlocks and 5017 Wood Door Deadlock. 1000-11 and 1000-21 have a rectangular escutcheon for mounting directly on door. 1000-01 and 1000-02 are without escutcheon, designed for easy push-nut mounting to door pull or other trim plate.
Features:
Materials: Turn Lever is zinc alloy. Escutcheon is stainless steel.

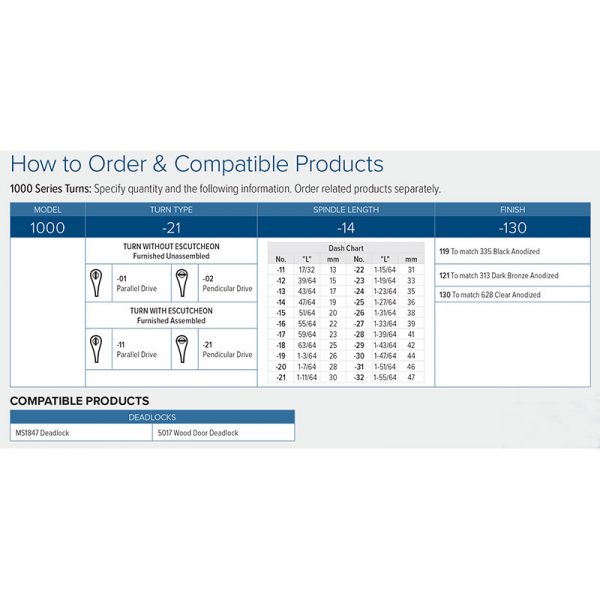

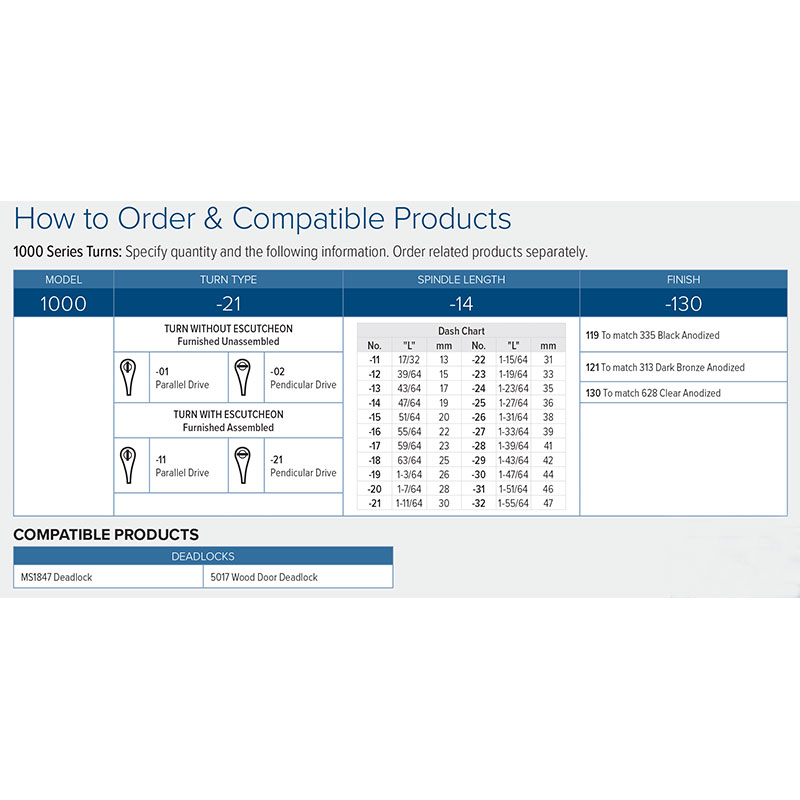

Spindles: Hardened steel, plated for corrosion resistance. First dash number in order guide indicates spindle parallel or perpendicular to turn lever (turn drawings below). Second dash number indicates spindle length “L” (see dash table on attached catalog page download).
Standard Package: Individually packaged. The -11 and -21 are assembled with escutcheon. The-01 and -02 are unassembled, include turn, spindle, washer and push nut for assembly on the door pull plate.
Options:
• The availability of both perpendicular and parallel drives in these turns, coupled with the three hub drive positions of the MS1847 lock, provides several options.
• Choice of turn drive position relates directly to the particular lock hub drive position. Special care in specifying both the proper turn and lock in ordering is recommended.
• Chart (in attached catalog page download) shows turn positions relative to lock hub positions. Broken line indicates direction of travel (45°) to retract bolt.
| Brand | |
|---|---|
| Finishes | 119 (To match 335 Black Anodized), 121 (To match 313 Dark Bronze Anodized), 130 (To match 628 Clear Anodized) |
