Adams Rite 4900 Heavy Duty Deadlatch

Adams Rite 4900 Heavy Duty Deadlatch, Flat Faceplate, Guarded Latch, Flat/Standard Jamb Strike

4900 Heavy Duty Deadlatch provides flexible traffic control and easy installation

Function:

Flexibility of traffic control and easy installation is offered by 4900 Series Heavy Duty Deadlatches. A key-controlled bolt hold-back feature allows for two-way traffic for applications which require free entrance at certain times and exit-only at other times. This allows a “locked” entrance to be used as an exit by visitors already in the building. 1-3/4″ [44.5 mm] minimum door thickness required. Interchangeable, without stile modification, with any MS1850S deadbolt of same backset and faceplate shape. Also retrofits to existing 4510 and discontinued 4700 Deadlatch preparations.

Operation:

Turn key or operate handle or paddle to retract spring-loaded latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Lock accepts any standard 1″ length, 1-5/32″ diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.

Features:

• Cylinder Backset: 31/32″, 1-1/8″ or 1-1/2″

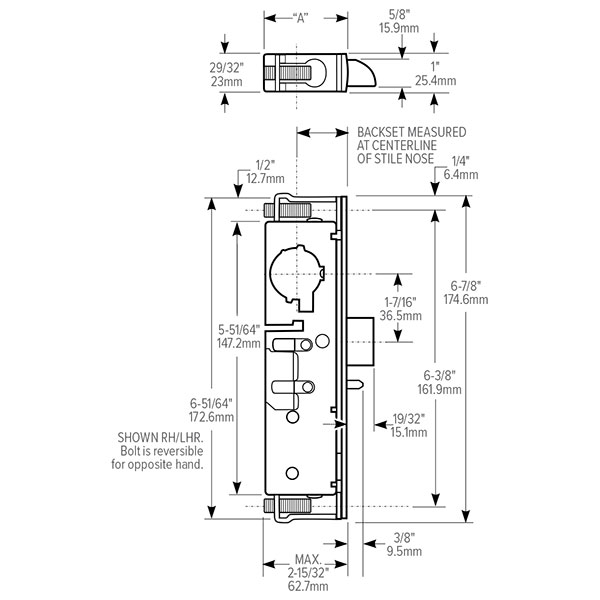

• Case: Steel with corrosion-resistant plating. Measures 7/8″ x 5-13/16″ x depth. Depth varies by backset. Screw-fastened tube spacer brackets allow for cleaner removal when tab mounting.
• Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging
• Latchbolt: Solid brass. Handing is easily reversible without special tools. Measures 5/8″ x 1″ x 5/8″ throw
• Auxiliary Linchpin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry
• Faceplate: Measures 1″ x 6-7/8″ (flat faceplate)
• Strike: Standard strike furnished is 4902 for flat jamb where door closes flush or nearly flush. Specify 4901 for retrofit installations.
• Standard Package: Individually boxed with strike and mounting screws. Cylinder, paddle, handle available separately.
