Product Overview

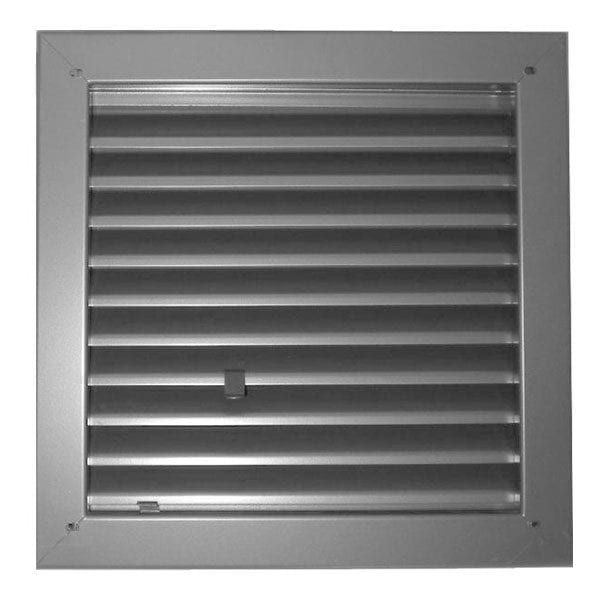

Twin “Z” blade louver. Recommended for Applications Where Both Non-Vision and Adjustable Design is Required in a Tandem Unit.
- Two Z-blade sections- the adjustable side is riveted to operating bar and frame at 1″ intervals, the fixed side is attached by interlocking construction to the frame
- Manually-adjustable on interior face
- Non-Vision Design
- Mitered and welded corners
- Designed for use with 1-3/4″ doors only
- Order size is equal to door cutout size
Brand | |
---|---|
Finishes | Gray (G), Mineral Bronze (B) |
Size | 12" x 12", 18" x 12", 18" x 18", 24" x 12", 24" x 18", 24" x 24" |
Door Thickness | 1-3/4" |
Construction | 18 gauge CRS frame and louver blades |
Material | Cold Rolled Steel |
Free Flow Area | 43% Free Area |
Fasteners | #8 x 3/4" Flathead Phillips SMS – Included |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
