Air Louvers VLFEZ-HRC 12″ x 12″ Hurricane-Rated Vision Lite PAK with 1/4″ Lexan Glazing

$188.81

Usually Ships: 5-10 Business Days
  • Complete Kit = Frame, Glazing and Caulking
  • 12″ x 12″ order size – includes 1/4″ clear polycarbonate glazing
  • Severe windstorm approved / Hurricane-rated

Product Overview

This complete PAK assembly is for applications requiring safety from wind-borne debris.

Includes tested and approved Lexan glazing and caulking. Ideal for hurricane rated steel doors.

  • 20-Gauge galvanneal steel frame (mineral bronze finish)
  • Mitered and welded corners with countersunk mounting holes

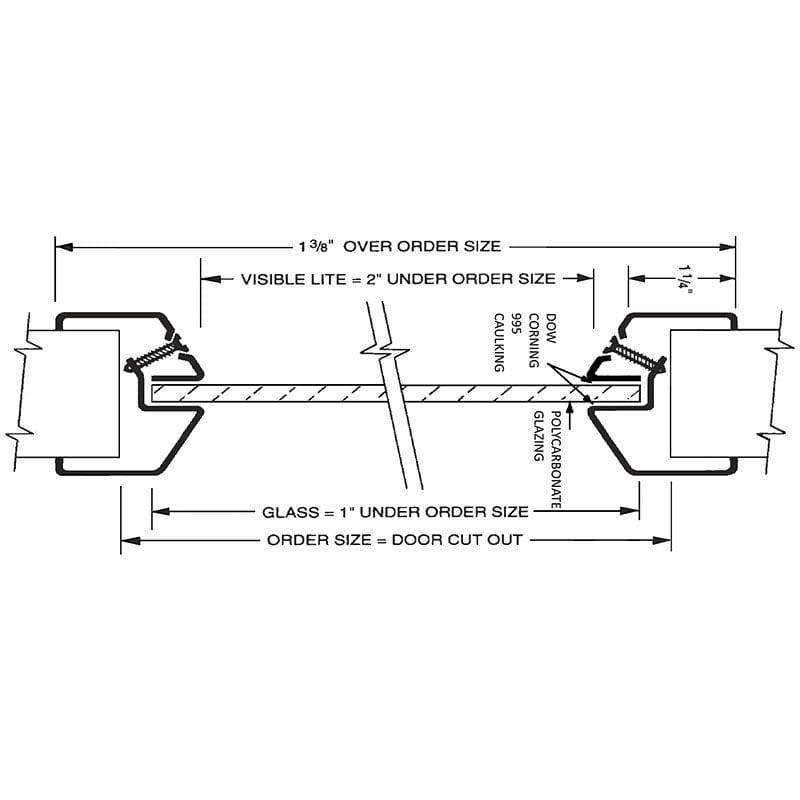

  • 12″ x 12″ Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Glazing: 1/4” Lexan® polycarbonate glazing Included – Complies with ASTME-1300-04 & -09
  • Caulking: Dow Corning 995® for caulking on both sides of glazing
  • Air Infiltration, Water Resistance, Structural Loading, Uniform Static Air Pressure, Forced Entry: TAS 202, ASTM E283, ASTM E330, ASTM E331, ASTM E1300, FBC 2411 3.2.1
  • Windstorm Resistance, Door Components: ANSI A250.13
  • Certified by Warnock-Hersey
  • Florida Building Code Approval File #FL13187-R2
  • Miami-Dade County Florida Component NOA 17-0404.01

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Order Size

12" x 12"
Finishes

Mineral Bronze (B)
Frame Profile

Standard
Glass Type

Polycarbonate
Glass Thickness

1/4"
Frame Construction

20 Gauge Galvennealed Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS – Included
Door Thickness

1-3/4"
Missile Impact

TAS 201, ASTM E1996 (impact 350 ft lb, Missile Level D, DP Rating 55 psf)
Florida Building Code Approval File

#FL13187-R2
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
