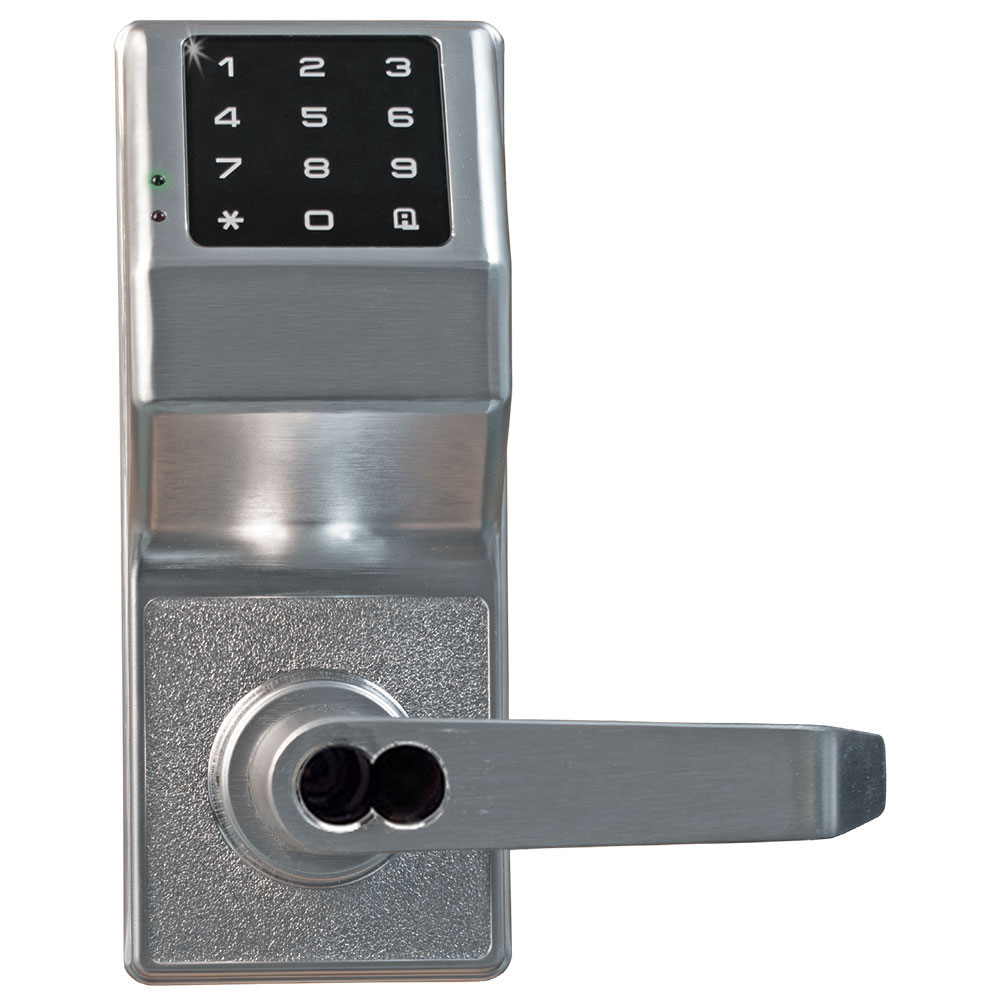

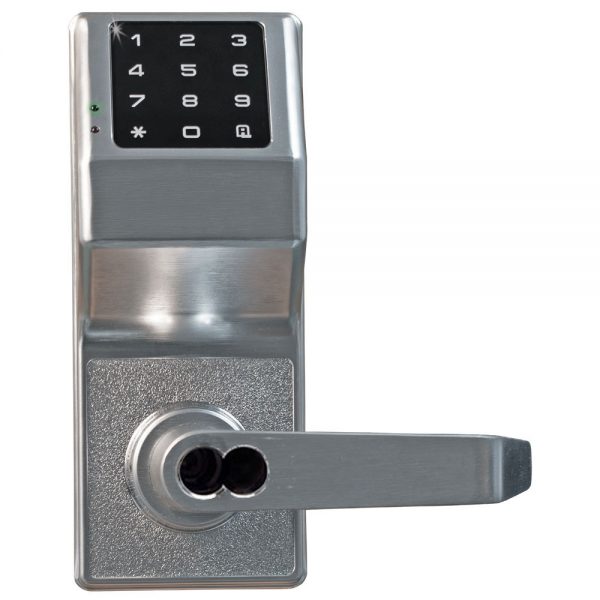

Alarm Lock TL2700IC Trilogy Touch T2 EZ-Touch Electronic Standalone Digital Cylindrical Lock, Small Format Interchangeable Core Prep, Weatherproof

Usually Ships: 1-2 Business Days
  • Heavy-Duty Grade-1 standalone electronic lock
  • Water-sealed for exterior or interior use, temp range +151°F to -31°F
  • Small format interchangeable core prep (core sold separately)

Available Options:

Alarm Lock TL2700IC EZ-Touch Cylindrical Door Lock, 100 Users, Straight Lever, SFIC Prep, Less Core, Weatherproof

TrilogyTouch T2 TL2700 – EZ-Touch Standalone Digital Cylindrical Lock

OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress

KEYPAD: Sleek EZ Touch Sense Panel with illuminating numbers that brighten to touch & go dark after use programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced

  • New! Sleek EZ Touch Sense Panel with illuminating numbers that brighten to touch & go dark after use. Easy clean-plane surface
  • Same Operation, Programming & Functions as standard DL2700 models
  • Grade 1 Durability. Dependable lockset with rugged clutch mechanism
  • Up to 100 different user codes (3-6 digits): 1 master, managers, 90 basic users, 3 one-time service codes
  • 100% touchscreen keypad programmable at the lock with a fingertip
  • Individual, group or total user lockout codes
  • Easy passage mode by manager and/or master
  • Easy to install in about an hour, retrofits cylindrical knobsets & digital locks using slightly modified ANSI 161 Series Prep
  • Standalone battery operated; 5 AA batteries ratedat 200,000 cycles
  • Class-Leading Longest Battery Life, Lowest Maintenance & TCO
  • Non-handed for easy installation and versatility
  • 2-wire remote override
  • Visual and audible entry indicators
  • All Trilogy models now weatherproof as standard -31°F to +151°F (-35°C to +66°C )
  • Choice of Architectural Finishes: Satin Chrome, Duronodic & Matte Black
  • Ideal for schools, healthcare, pharmacies, rental properties, offices, retail and corporate

alarm-lock-applications

Brand

Finishes

US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome

ANSI/BHMA Standard

BHMA Grade 1 Lockset

Usage

Heavy Duty

Lock Function

Touchscreen Keypad

User Codes

100 +3 +1

Backset

2-3/4"

Strikes

1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included

Door Thickness

1-5/8 to 1-7/8”

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Handing

Non Handed – Completely Reversible

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Operating Temperature

+151°F to -31°F (+66°C to -35°C)

Power

5 AA alkaline batteries are now rated at 200,000 cycles, supplied

Reader Type

Keypad

Door Applications

Interior or Exterior Metal and Wood Doors

Lock Type

Cylindrical Lock

Warranty

2 Years
