Anemostat AFDL Louver with Inverted V Blades

Usually Ships: 5-10 Business Days
  • 18-gauge steel frame – free area 55%
  • For use with 1-3/4″ thick steel and wood doors
  • Self-attaching, vandal-proof design

Available Options:

Anemostat AFDL No Vision Door Louver for 1-3/4″ Thick Doors

Louvered doors help ventilate rooms when closed while still providing privacy and security.

AFDL Frame: Self-attaching frame with 1-1/4″ trim, mitered, and welded corners.

  • Mitered and welded corners
  • Welded reinforcing clips at corners
  • Free Flow Area: 55% free

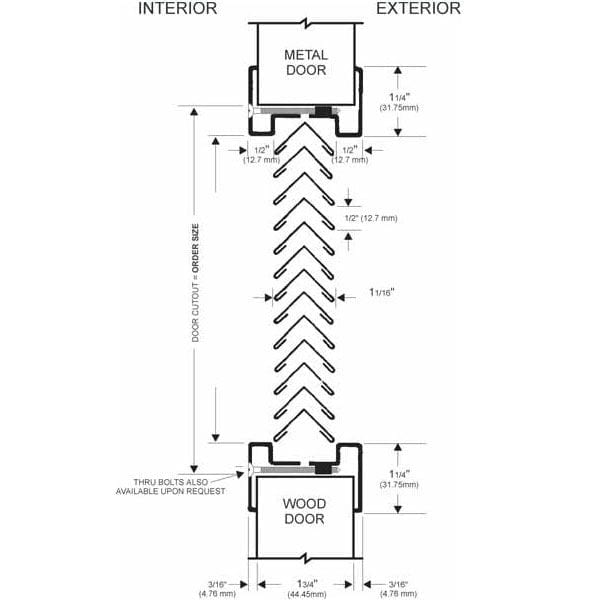

  • Inverted “V” blades are frame supported at 1/2″ increments, with blocked vision design
  • Single side mounting for non-corridor exposure with fastening screws included
  • Counter-sunk mounting screw-holes
  • Order size is equal to door cutout size





Brand

Finishes

CAB – California Bronze, GPZ – Gray Primer

Size

12" x 12", 18" x 12", 18" x 18", 24" x 12", 24" x 18", 24" x 24", 24" x 60"

Material

Cold Rolled Steel

Door Thickness

1-3/4"

Free Flow Area

55% Free Area

Fasteners

#8 x 3/4" Flathead Phillips SMS – Included

Fire Rating

None

Warranty

5 Year

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
