Product Overview

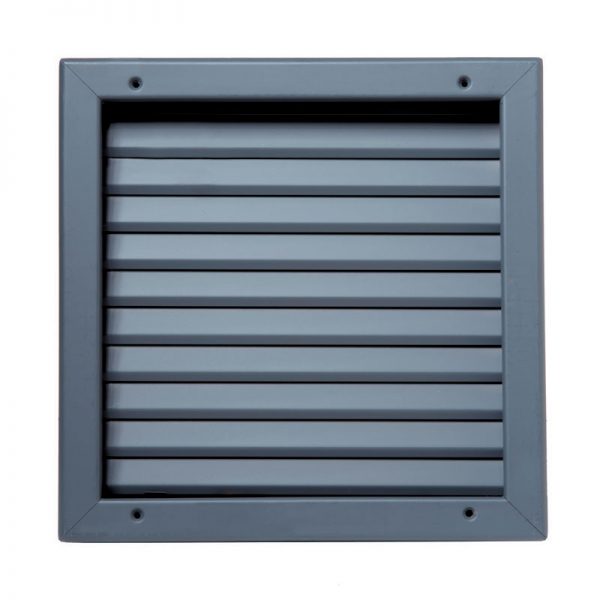

Anemostat/NGP FLDL Fire-Rated Fusible Link Louver for 1-3/4″ Thick Doors up to 90 Minutes
- Blades close when activated by fire/heat
- 18 ga. cold rolled steel frame
- 18 ga. cold rolled steel adjustable “Z” blades
- Mitered corners secured with reinforcing clips
- Stainless Steel Spring
- 165° Fusible link
- Free area 40%
- #8 x 3/4″ Phillips head SMS
- UL Listed for use in 45-90 minute fire-rated doors (not allowed in 20 min. or 3-hour doors)
- Standard GPZ-Gray Primer finish (field finish to desired color)
| Brand | |
|---|---|
| Finishes | CAB – California Bronze, GPZ – Gray Primer |
| Size | 12" x 12", 18" x 12", 18" x 18", 24" x 12", 24" x 18", 24" x 24" |
| Material | Cold Rolled Steel |
| Fire Rating | CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 |
| Free Flow Area | 40% Free Area |
| Fasteners | #8 x 3/4" Flathead Phillips SMS – Included |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
