FLDL-SG1
FLDL-SG1

Anemostat FLDL-SG1 STORM-PRO Fire-Rated Fusible Link Door Louver with Adjustable Z Blades and Security Grille

Usually Ships: 5-10 Business Days
  • Blades close when activated by fire/heat
  • For 1-3/4″ thick doors
  • Windstorm rated

Available Options:

Product Overview

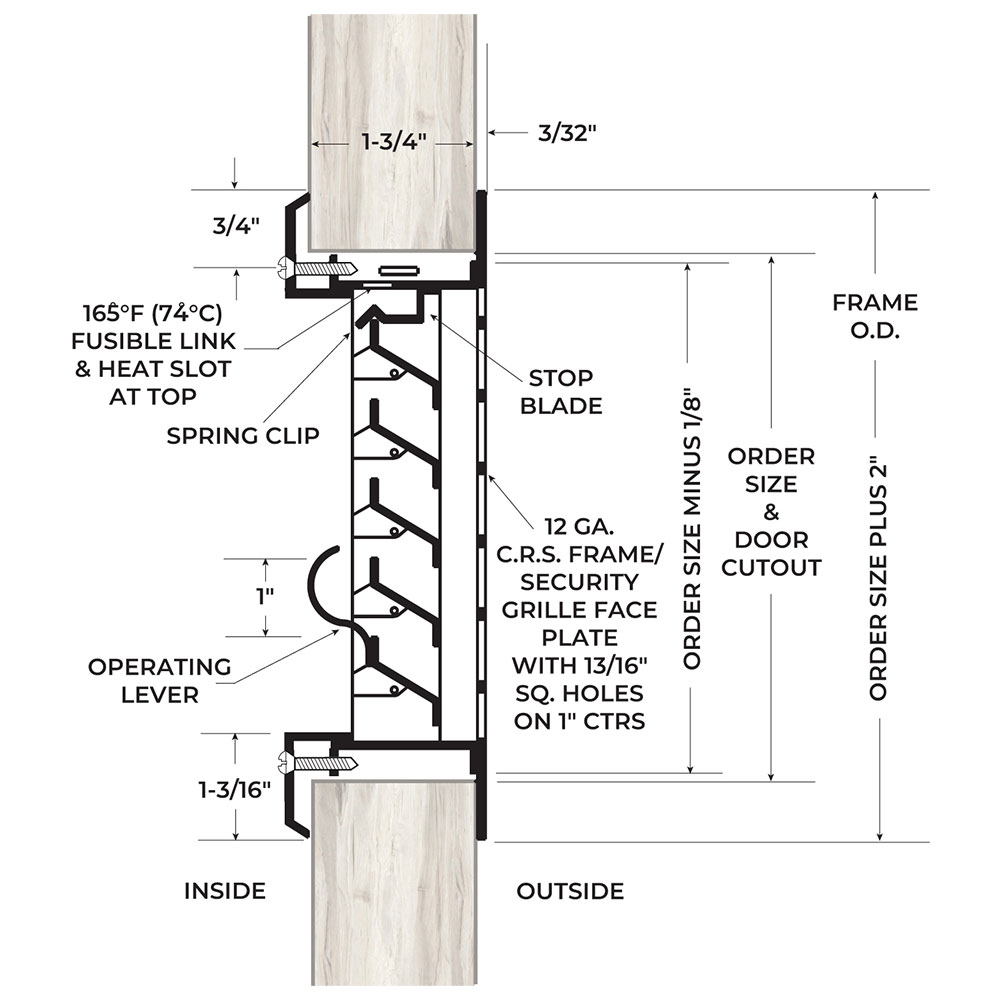

Anemostat/NGP FLDL-SG1 STORM PRO™ Fire-Rated Fusible Link Louver for 1-3/4″ Thick Doors

  • For 1-3/4″ Thick Doors Up To 90 Minutes
  • Blades Close When Activated By Fire/Heat
  • 18 Ga. Cold Rolled Steel Frame
  • 18 Ga. Cold Rolled Steel Adjustable “Z” Blades
  • 12 Ga. Cold Rolled Steel Security Grille One Side
  • Mitered Corners Secured With Reinforcing Clips
  • Stainless Steel Spring
  • 165º Fusible Link
  • #8 x 1″ Torx Security Pin Screws
  • Free Area 40%
  • Gray Primer (GPZ) Powder Coat Finish
  • Windstorm-Rated
  • Louver for Use in Windstorm-Rated Assembly in Accordance With ANSI/ASTM E330, ANSI/ASTM E1886, ASTM E1996, AAMA/WDMA/CSA 101/I.S.2/A440, FEMA 320, FEMA 361 and ICC 500. Design Pressure = +/- 70 PSF, Large Missile Impact = 350 ft. lbs., Hazard – Hurricane
  • Maximum Size for Hurricane Use is 24″ x 24″ (610mm x 610mm)

Brand

Finishes

CAB – California Bronze, GPZ – Gray Primer
Size

12" x 12", 18" x 12", 18" x 18", 24" x 12", 24" x 18", 24" x 24"
Material

Cold Rolled Steel
Door Thickness

1-3/4"
Free Flow Area

40% Free Area
Fasteners

#8 x 1" Torx Security Pin Screws
Fire Rating

Up to 90 Minutes
Warranty

5 Year
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
