Anemostat PLSL STORM PRO Security Door Louver with Inverted Split Y Blades and Security Grille

Usually Ships: 5-10 Business Days

Includes security grille – Free area 50%
For 1-3/8″ to 1-3/4″ thick doors
Windstorm rated

Available Options:

Finish

Clear

Quantity:

Anemostat/NGP PLSL STORM PRO™ Inverted Split Y Security Door Louver for 1-3/8″ to 1-3/4″ Thick Doors

For 1-3/8″ to 1-3/4″ Thick Doors

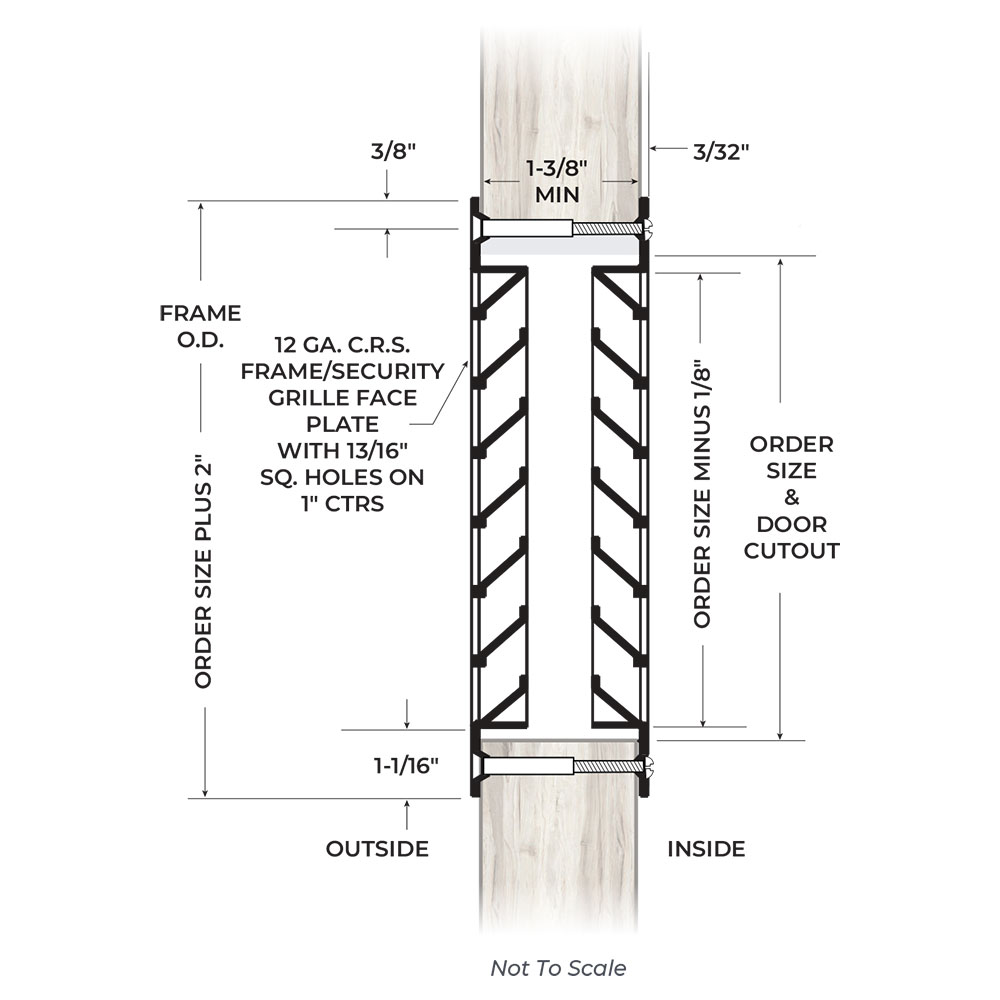

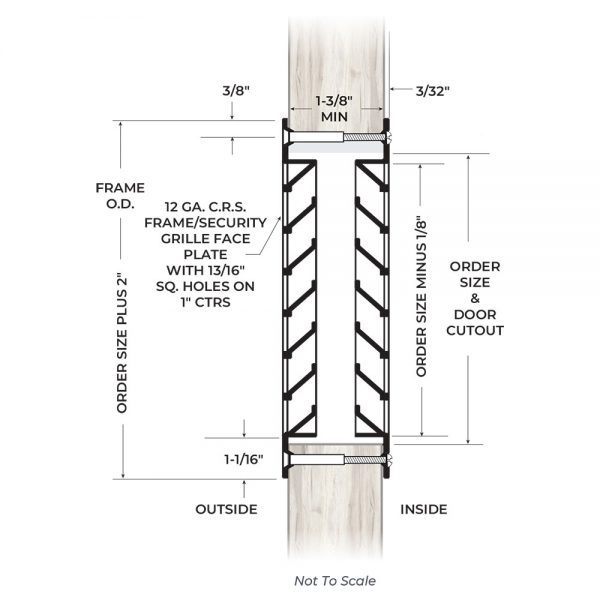

12 Ga. Cold Rolled Steel Security Grille Frame With 13/16″ Square Holes on 1″ Centers
20 Ga. Cold Rolled Steel Louver Blades
Countersunk Mounting Screw-Holes
#8-32 Phillips Head Screw Thru-Bolts
Free Area 50%
Windstorm Rated
For Use in Windstorm-Rated Assembly in Accordance With ANSI/ASTM E330, ANSI/ASTM E1886, ASTM E1996, AAMA/WDMA/CSA 101/I.S.2/A440, FEMA 320, FEMA 361 and ICC 500. Design Pressure = +/- 70 PSF, Large Missile, Impact = 350 ft. lbs., Hazard – Hurricane
This Product is Not Rated for Use on Fire-Rated Doors

Brand	Anemostat
Finishes	CAB – California Bronze, GPZ – Gray Primer
Size	12" x 12", 18" x 12", 18" x 18", 24" x 12", 24" x 18", 24" x 24", 24" x 60", 24" x 64"
Material	Cold Rolled Steel
Door Thickness	1-3/8" to 1-3/4"
Free Flow Area	50% Free Area
Fasteners	#8-32 Phillips Head Screw Thru-Bolts
Fire Rating	None
Warranty	5 Year
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
