ASI 0692 Surface Mounted Stainless Steel Shelf

ASI 10-0692-_ Shelf – Stainless Steel – Surface Mounted

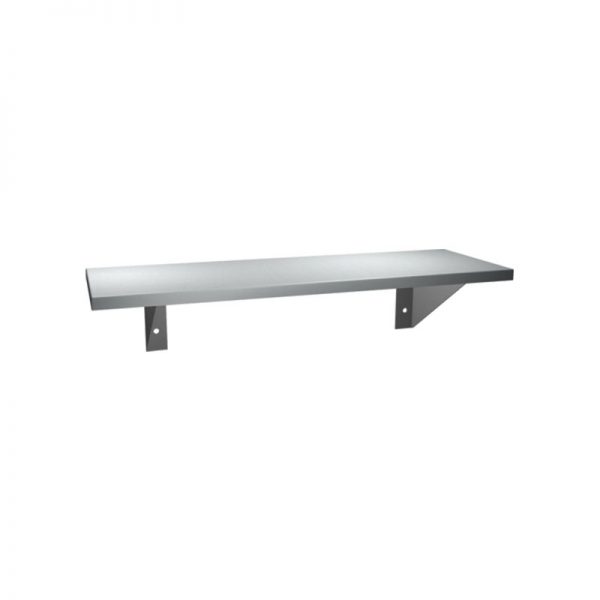

Fabricated of 18 gauge stainless steel with a satin finish. Front edge is hemmed for maximum rigidity and safety. See chart for standard sizes.

Shelf is stable and stationary after proper and secure mounting to adequate wall reinforcement or stud structure. Shelf is suitable for wet (self-contained) or dry materials storage.

Size Chart

0692-512 – 5″ [127] Deep x 12″ [305] Long
0692-518 – 5″ [127] Deep x 18″ [457] Long
0692-530 – 5″ [127] Deep x 30″ [762] Long
0692-548 – 5″ [127] Deep x 48″ [1219] Long
0692-516 – 5″ [127] Deep x 16″ [406] Long
0692-524 – 5″ [127] Deep x 24″ [609] Long
0692-536 – 5″ [127] Deep x 36″ [914] Long
0692-560 – 5″ [127] Deep x 60″ [1524] Long

0692-612 – 6″ [152] Deep x 12″ [305] Long
0692-618 – 6″ [152] Deep x 18″ [457] Long
0692-630 – 6″ [152] Deep x 30″ [762] Long
0692-648 – 6″ [152] Deep x 48″ [1219] Long
0692-616 – 6″ [152] Deep x 16″ [406] Long
0692-624 – 6″ [152] Deep x 24″ [609] Long
0692-636 – 6″ [152] Deep x 36″ [914] Long
0692-660 – 6″ [152] Deep x 60″ [1524] Long

0692-812 – 8″ [203] Deep x 12″ [305] Long
0692-818 – 8″ [203] Deep x 18″ [457] Long
0692-830 – 8″ [203] Deep x 30″ [762] Long
0692-848 – 8″ [203] Deep x 48″ [1219] Long
0692-816 – 8″ [203] Deep x 16″ [406]Long
0692-824 – 8″ [203] Deep x 24″ [609] Long
0692-836 – 8″ [203] Deep x 36″ [914] Long
0692-860 – 8″ [203] Deep x 60″ [1524] Long

Installation

Unit is surface mounted on wall or partition using #10 [M5] self-threading screws or other appropriate fasteners (by others) through holes provided in support brackets. Ensure that adequate in wall blocking or other reinforcement is provided (by others) to support shelf and intended loading weight. For compliance with 2010 ADA Accessibility Standards install unit so that shelf top is between 48″ [1219] maximum Above Finished loor (AFF) and 32″ [813] minimum AFF. Typical for general utility is 42″ [1067] AFF or 18″ [457] above washbasin.
