Product Overview

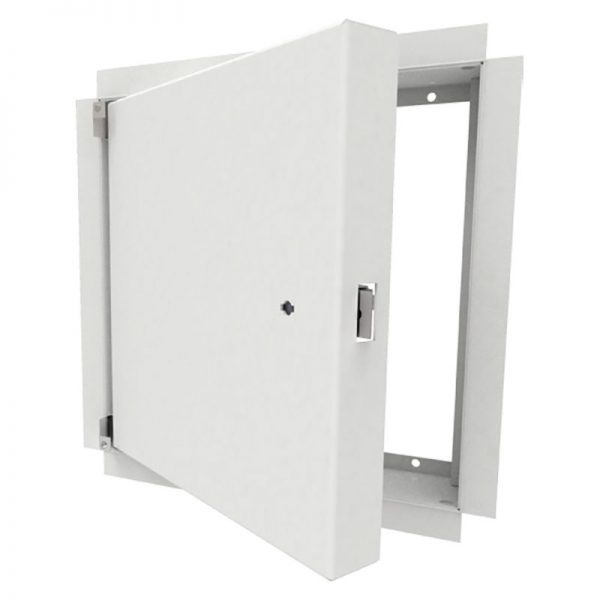

Babcock Davis BIWK Insulated Fire-Rated Access Door, Drywall Bead Flange, Knurled Knob/Key Latch, Flush Continuous Piano Hinge, White Powder Coat
Steel access doors allow access to mechanical, electrical, or plumbing fixtures inside or behind walls and ceilings. Designed for commercial use. Can easily be painted to match wall and ceiling colors. The Insulated Access Door provides access through openings in fire-rated walls and ceilings.
Designed for wall and ceiling applications, this fire-rated Insulated Access Door is UL and Warnock-Hersey listed. Engineered with mineral fiber to assist in reducing heat transfer in the event of a fire.
- Wall rating UL 1-1/2 hour B door
- Ceiling rating Warnock Hersey 3 hour
- Continuous hinge
- Insulation 2” thick and fire retardant
- Frame 16 gauge cold rolled steel
- Door 20 gauge cold rolled steel, Self-Closing, Self-Latching
- Drywall bead flange
- Flush key / knurled knob
- Prime finish with baked-on rust inhibitor
- Rough opening 1/4” over
| Brand | |
|---|---|
| Fire Rating | Wall: 1-1/2 UL Listed – Ceiling: 3 Hour Warnock Hersey Listed |
| Finish | White |
| Rough Opening Size | 1/4" Over |
| Flange | Drywall bead |
| Latch | Knurled Knob / Key Operated Latch Bolt |
| Insulation | 2 inch Thick, Fire-Rated Mineral Fiber, R-8 |
| Applications | Ceiling or Wall |
