BNTM

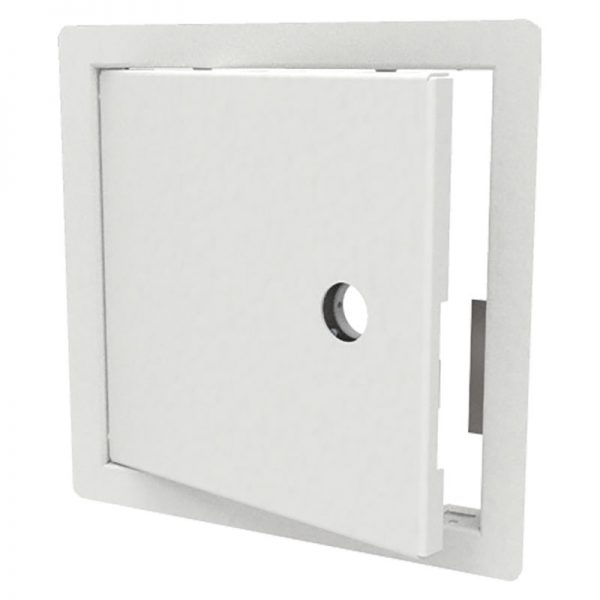

Babcock Davis BNTM Architectural Access Door, 1″ Exposed Flange, Mortise Cylinder Prep

Usually Ships: 2-3 Business Days
  • All-purpose flush access panel for walls and ceilings
  • Easy install tabs, firmly fitting the door to the wall without flexing the frame
  • White powder coat primer finish

Available Options:

Product Overview

Babcock Davis BNTM Architectural Access Door, 1″ Flange, Concealed Spring Button Hinge, Mortise Cylinder Prep (less cylinder), White Powder Coat

Steel access doors allow access to mechanical, electrical, or plumbing fixtures inside or behind walls and ceilings. Designed for commercial use. Can easily be painted to match wall and ceiling colors. Constructed with an industry-standard 16 gauge steel door, the updated design provides superior strength and design aesthetics.

The Babcock-Davis Architectural Access Door is built with the architect in mind. Constructed with an industry-standard steel door, the design further improves on strength and aesthetics.

ANTI-FLEX FRAME Screws are inserted through our patent-pending Easy Install Tabs, firmly fitting the door to the wall without flexing the frame.
PAINLESS INSTALLATION When mounting screws are not required, quickly and easily install your new panel by bending our Easy Install Tabs over the drywall.

  • Concealed spring pin hinge
  • Frame 16 gauge cold rolled steel
  • Door 16 gauge cold rolled steel
  • Flange 1” wide exposed
  • Mortise Cylinder Prep (cylinder sold separately)
  • Primer finish with baked-on rust inhibitor
  • Rough opening 1/4” over
Brand

Fire Rating

None
Finish

White
Rough Opening Size

1/4" Over
Material

16 gauge Steel
Latch

Mortise Cylinder Prep (1-1/8" mortise cylinder required – sold separately)
Hinge

Concealed spring button
Flange

1 inch Exposed
Pan Depth

1/2 inch
Applications

Ceiling or Wall
