Best 661HD UL Heavy Duty Full Mortise Concealed Continuous Geared Hinge

Usually Ships: 5-10 Business Days
  • Flush mounted (no door inset)
  • Fire-rated up to 90-minutes
  • Supports weights up to 450lbs

Available Options:

Clear

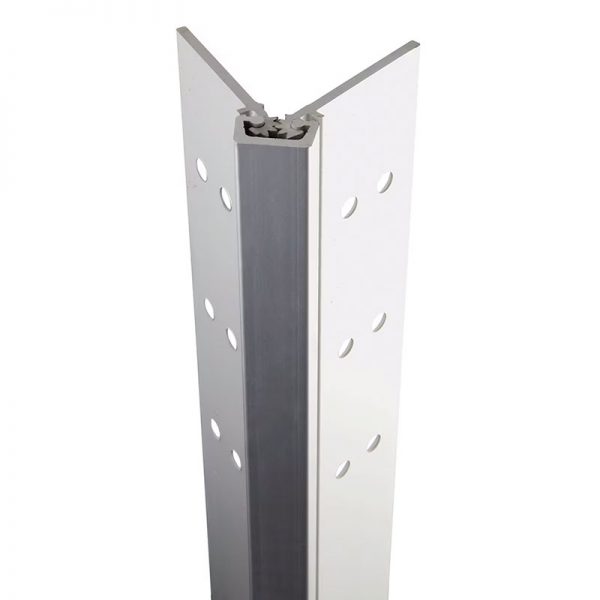

Best (Formerly Stanley) 661HD UL Aluminum Continuous Gear Hinges Full Mortise

Stanley Hinges have been re-branded as Best Hinges. Packaging may change but it’s still the same quality hinge you have relied on for decades from Stanley. Depending on stock levels and availability these hinges may be shipped with the Stanley or Best packaging.

Installs in minutes – Lasts a lifetime

BEST Aluminum Continuous Geared Hinges are as tough and practical as they are sleek and attractive.

Made of 6063-T6 aluminum, they are designed and built to last for the life of the building. “Form follows function” bearing channel is pleasing to the eye and applauded by architects.

Engineered with a minimum number of fasteners reduces installation time without sacrificing performance.

All models conform to ANSI/BHMA A156-26-1996, Grade 1 Standard. Out of the box has a 90-min fire rating for metal doors up to 4′ x 10′

  • No door inset, flush mount
  • For use on 1-3/4″ doors only
  • Distributes door weight and stress along the full length of door and frame
  • No misaligned pivot points of individual hinges, typically no addition reinforcement required
  • 48″ door width maximum
  • Clear aluminum, dark bronze and black anodized finishes
  • Conforms to ANSI/BHMA Standard A156.26-1996, Grade 1
  • Supports doors up to 450 lbs.
  • Hinge covered by limited lifetime warranty for the life of the building
  • Standard Lengths: 79″, 83″, 85″, *95″, *120″
  • Approved for use on metal swinging type fire doors rated up to and including 90 minutes
  • Approved for use on wood swinging type fire doors rated up to and including 60 minutes

*Oversize handling fee applies (added at checkout)

Brand

Finish

Anodized Aluminum, Black, Dark Bronze

Length

79" (for 6'8" door), 83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door), 120" (for 10'0" door)

Continuous Hinge Type

Full Mortise (Concealed)

ANSI/BHMA Standard

ANSI/BHMA A156.26-2017 Certified

Usage

Heavy Duty

Fire Rating

Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes

Material

Aluminum

Fasteners

12-24 x 3/4" undercut self-drilling, thread-forming tek machine screw

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
