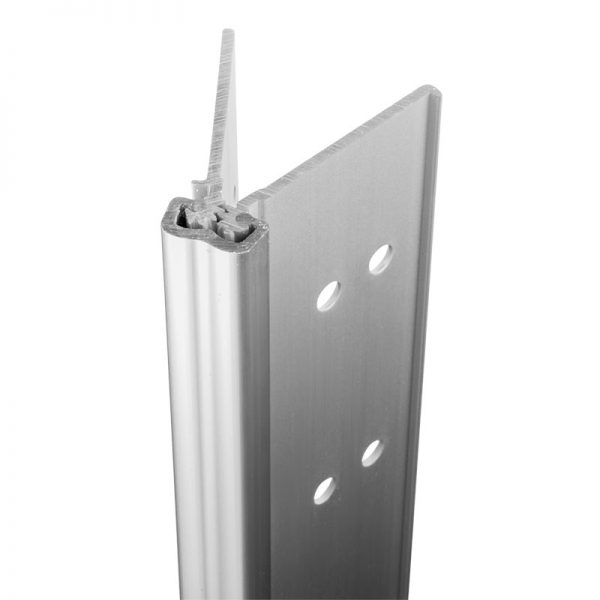

Best 662HD UL Heavy Duty Full Mortise Concealed Continuous Geared Hinge

Best (Formerly Stanley) 662HD UL Aluminum Continuous Gear Hinges Full Mortise

Stanley Hinges have been re-branded as Best Hinges. Packaging may change but it’s still the same quality hinge you have relied on for decades from Stanley. Depending on stock levels and availability these hinges may be shipped with the Stanley or Best packaging.

Installs in minutes – Lasts a lifetime

BEST Aluminum Continuous Geared Hinges are as tough and practical as they are sleek and attractive.

Made of 6063-T6 aluminum, they are designed and built to last for the life of the building. “Form follows function” bearing channel is pleasing to the eye and applauded by architects.

Engineered with a minimum number of fasteners reduces installation time without sacrificing performance.

All models conform to ANSI/BHMA A156-26-1996, Grade 1 Standard. Out of the box has a 90-min fire rating for metal doors up to 4′ x 10′

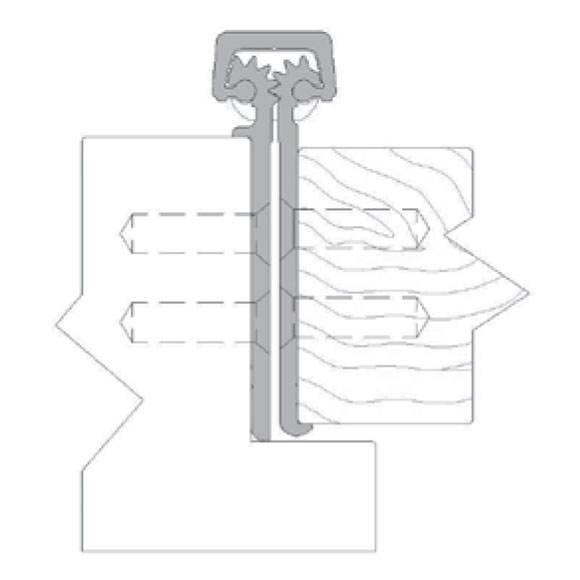

• With door edge protection lip
• For use on 1-3/4″ doors only
• 3/32″ door inset
• Distributes door weight and stress along the full length of door and frame
• No misaligned pivot points of individual hinges, typically no additional reinforcement required
• 48″ door width maximum
• Conforms to ANSI/BHMA Standard A156.26-1996, Grade 1
• Supports doors up to 450 lbs.
• Hinge covered by limited lifetime warranty for the life of the building
• Standard Lengths: 79″, 83″, 85″, *95″, *120″
• Approved for use on metal swinging type fire doors rated up to and including 90 minutes
• Approved for use on wood swinging type fire doors rated up to and including 60 minutes

*Oversize handling fee applies (added at checkout)
