Product Overview
Cal-Royal CR3D62 3D Adjustable Invisible Hinges (Box of 3ea.), 6-5/16″ x 1-1/4″, 1-1/2″ Minimum Door Thickness
3D Adjustable Concealed Hinge for use with Wood and Hollow Metal Doors
- Zinc Alloy manufactured for Oxidation Resistance
- Durable Galvanized Steel Covers to conceal the screws

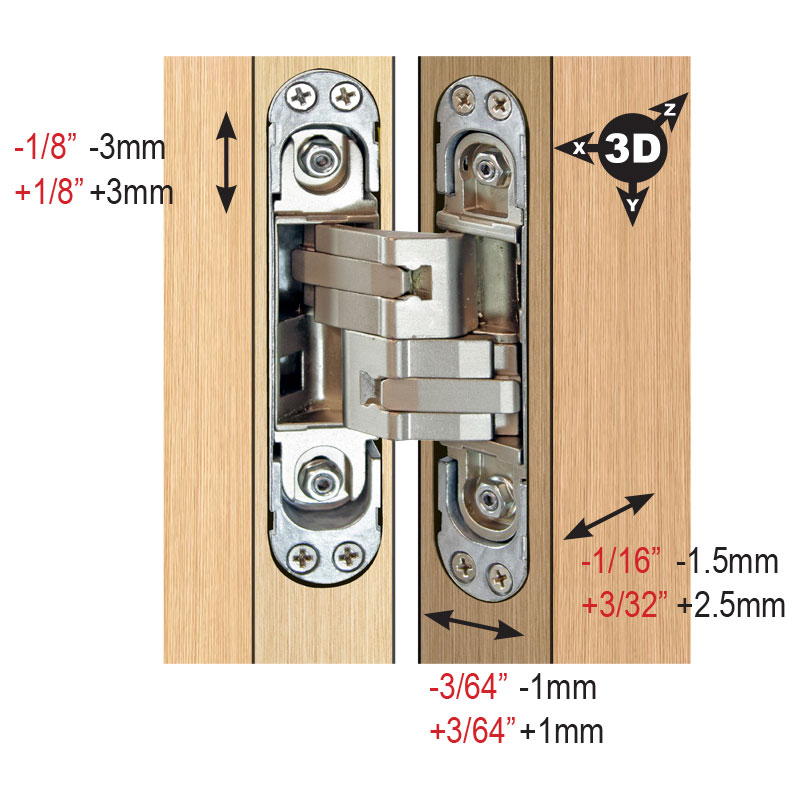

- Easy 3D Adjusting System
- Easy Installation and Maintenance Free
- Complete Reversibility (same slot on the door and the frame)
- Total Recessed Hinge Body (door and frame gap is very small)
- Milling cut up to 9/32″ (7mm) from the internal edge
- UL Listed for 2-Hour Fire Rated Doors (UL LISTING APPLICABLE ONLY FOR USE ON WOOD / COMPOSITE TYPE DOORS)
- CE Certified for 200,000 Opening / Closing Cycles
- 100% Made in Italy

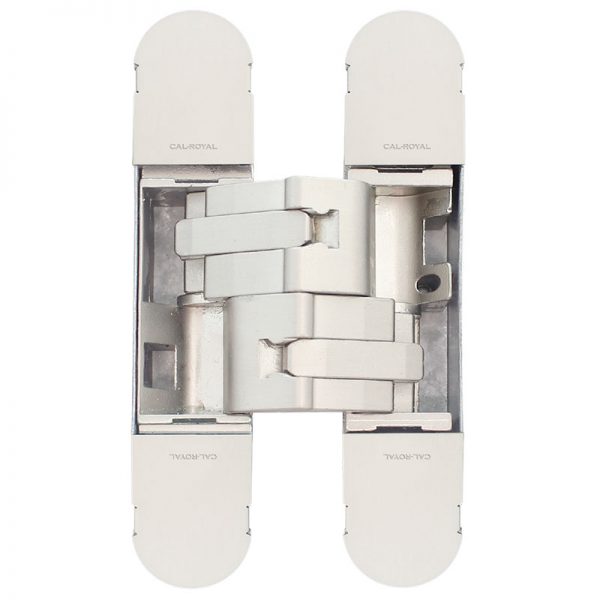

- Elegant Minimalistic Design that is available in US1, US4, US10B, US14, US15, US26, US26D and US28 finishes with no visible screws
Specifications
- 180° Fluid Opening
- 1 ½” (38mm) minimum door thickness

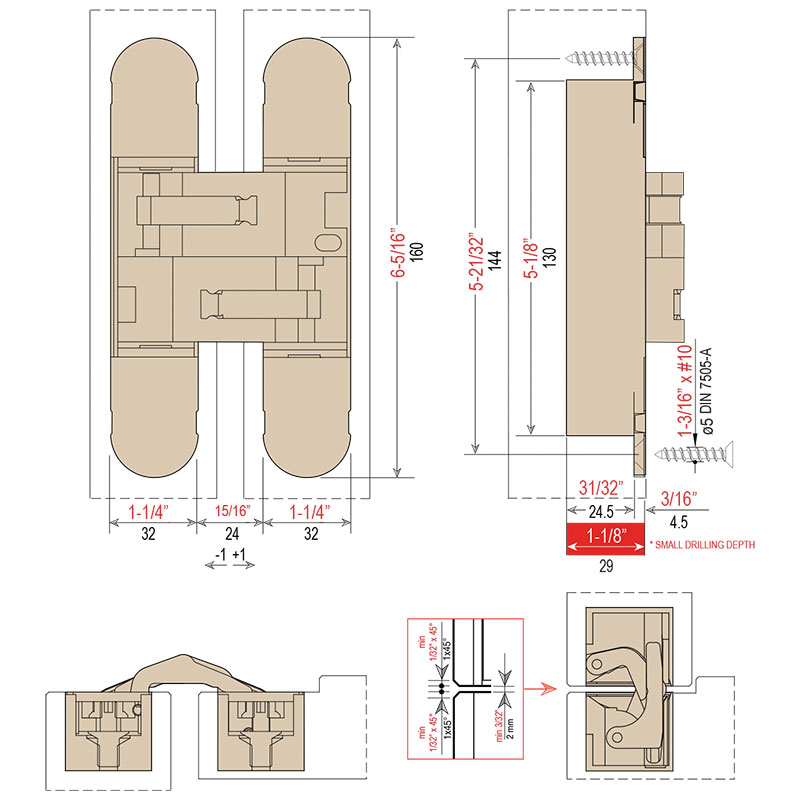

- Overall Length: 6-5/16″ (160mm)
- Width (frame part): 1-1/4″ (32mm)
- Width (door part): 1-1/4″ (32mm)
- Depth: 1-1/8″ (29mm)
- Load Capacity: 3 or 4 Hinges – 120kg (265lbs), 2 Hinges – 80kg (177lbs)
- Fire Proof Min. : EI-120’
Drilling templates and accessories available in our Hinge Accessories section
| Brand | |
|---|---|
| Finishes | US1 Black, US28 Clear Anodized Aluminum, US10B Oil Rubbed Bronze, US26 Bright Chrome, US4 Satin Brass, US15 Satin Nickel, US26D Satin Chrome |
| Door Applications | Metal and Wood Doors (1-1/2" minimum door thickness) |
| Size | 6-5/16" x 1-1/4" |
| Box Quantity | 3 |
| Country of Origin | Italy |
