Cal-Royal CR550 Series Surface Mount Overhead Door Holders and Stops

Cal-Royal CR550 Series Medium-Duty Surface Mount Overhead Door Holders and Stops

Cal-Royal CR550 Series holders and stops are designed to give dependable surface-mounted overhead door control for medium to light-duty applications. The CR550 series holders and stops can be installed in almost all types of doors and frames including doors with conventional butt hinges, offset pivots, continuous hinges, swing clear hinges and other specialty hinges. They can be mounted to accommodate 85° – 110° door opening. Each door holder and stop models come in four different sizes.

Features

• Limits door swing
• Non-Handed / Reversible
• Built-in cushioned stop
• Available stop only or stop/hold
• Automatic hold-open and release by push and pull on door
• Hold-open can be disengaged to act as stop only
• Heavy shock absorber spring provides compression before dead stop
• Screw packet included to allow for installation in wood or metal door and frame
• Maximum opening 110°, minimum door thickness 1-3/8″
• Available in architectural finishes
• UL Listed as STOP Function

Compliance

• ANSI A156.8 UL Listed as STOP Function

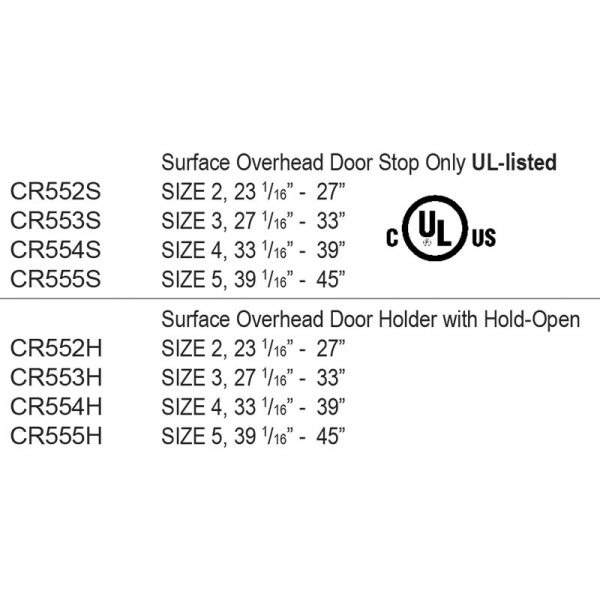

Models: CR552S-US26D, CR552H-US26D, CR552S-US32D, CR552H-US32D, CR553S-US26D, CR553H-US26D, CR553S-US32D, CR553H-US32D, CR554S-US26D, CR554H-US26D, CR554S-US32D, CR554H-US32D, CR555S-US26D, CR555H-US26D, CR555S-US32D, CR555H-US32D
