Cal-Royal CRHD781120 Heavy-Duty Full Mortise Concealed Continuous Hinge

Usually Ships: 2-3 Business Days
  • Full mortise, flush mounted (no door inset)
  • Eliminates door sag and binding
  • For use with 1-3/4″ thick doors

Available Options:

Cal-Royal CRHD781120_ Heavy-Duty Full Mortise Concealed Continuous Hinge

Cal-Royal continuous geared hinges are designed to provide superior performance you can rely on in high-traffic areas because instead of using a pin as in conventional hinges, we use a geared rotating joint. Weight is distributed evenly along the full length of the frame, thus minimizing wear on the hinge. Approved for use on swing type doors of hollow metal, tinclad, sheet-metal and steel covered composite type rated up to and including 3 hours. Wood composite doors rated up to and including 1 1/2 hours.

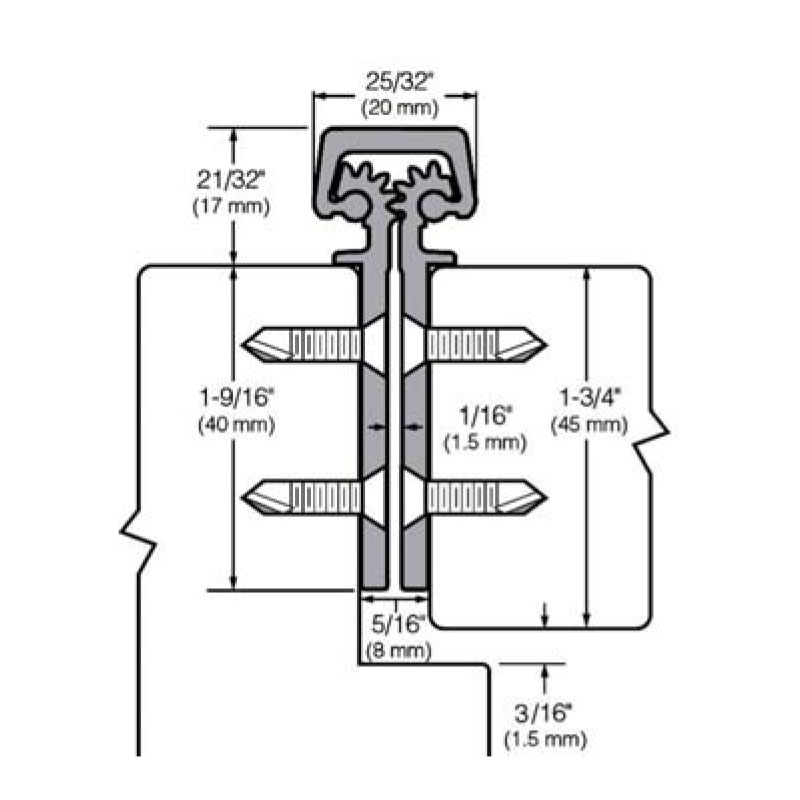

  • Leaves are concealed between the rabbet of the frame and the hinge egde of the door
  • Flush mounted (no door inset)
Brand

Length

83" (for 7'0" door), 95" (for 8'0" door)

Finishes

Clear Anodized Aluminum, Dark Bronze Anodized Aluminum

Usage

Heavy Duty

Continuous Hinge Type

Full Mortise (Concealed)

Door Applications

1-3/4″ Thick Doors
