Cal-Royal ICCGN01 Entrance Pushbutton Lever Lock, Small Format Interchangeable Core Prep

Usually Ships: 2-3 Business Days
  • Heavy-Duty, BHMA/ANSI Grade 1 certified
  • Small format interchangeable core prep (core sold separately)
  • ADA compliant, 3-hour fire-rated

Available Options:

Product Overview

Cal-Royal Genesys Series, ICCGN01 Entrance Lever Lock, (SFIC) Small Format Interchangeable Core Prep

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

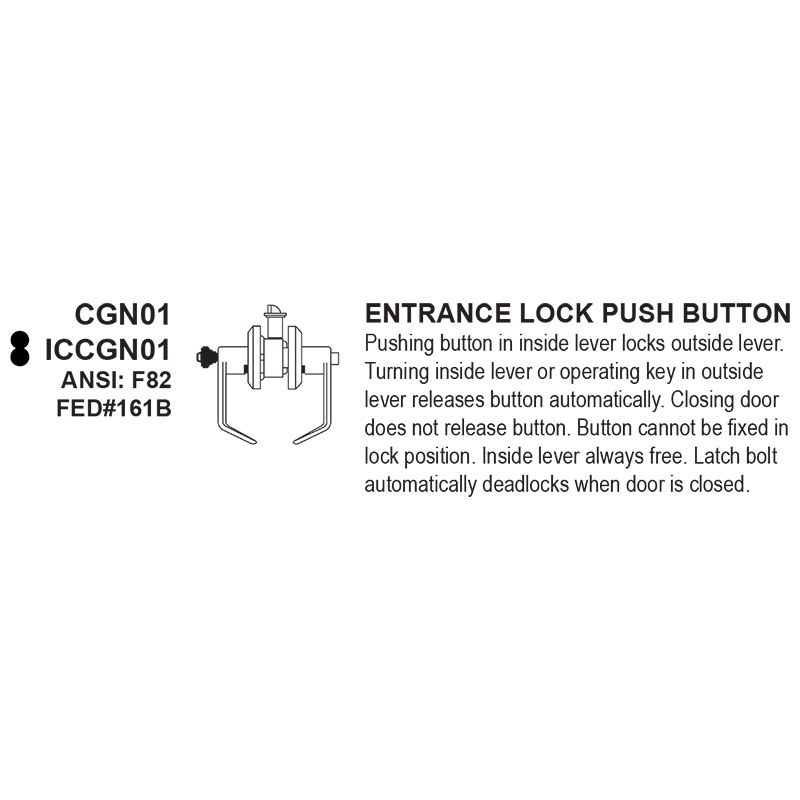

ANSI Function F82 – Pushing button in inside lever locks outside lever. Turning inside lever or operating key in outside lever releases button automatically. Closing door does not release button. Button cannot be fixed in lock position. Inside lever always free. Latch bolt automatically deadlocks when door is closed.

  • Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements
  • Heavy-duty cylindrical leversets
  • Clutch mechanism, fixed thru-bolt installation
  • ADA Compliant

codes

Brand

Finishes

US26D (626) Satin Chrome
Lock Function

Entry (Entrance)
Usage

Heavy Duty
ANSI/BHMA Standard

ANSI/BHMA A156 2 Series 4000 Grade 1
Cylinder Format

Small Format Interchangeable Core (SFIC)
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Backset

2-3/4"
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non-Handed
Fire Rating

UL/cUL listed up to 3 Hours
Door Thickness

1-3/8" to 1-3/4"
