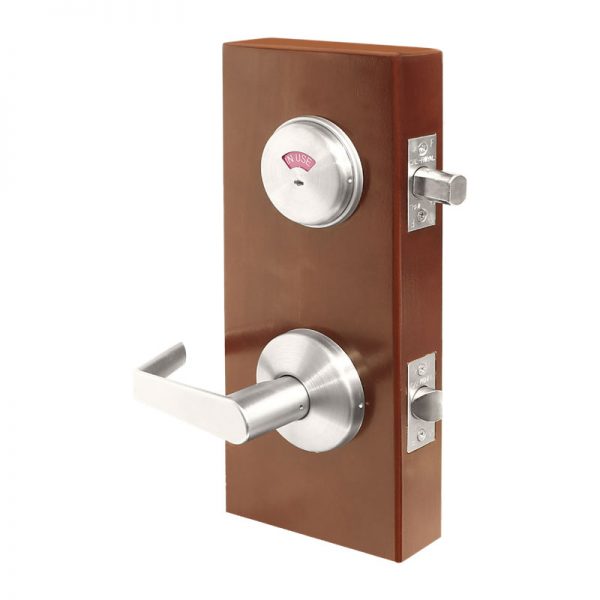

Cal-Royal IND-JHIL30 Indicator Deadbolt Interconnected Passage Lock

Usually Ships: 2-3 Business Days

BHMA Certified ANSI A156.12 Grade 2
Indicator Deadbolt Interconnected Passage Lock
UL listed for 3-hour fire door

Available Options:

Finish

Clear

Quantity:

Cal-Royal IND-JHIL30 Indicator Deadbolt Interconnected Passage Lock – Grade-2, 4″ or 5-1/2″ CTC Length, 2-3/4″ B.S., T-Strike, US26D Satin Chrome Finish

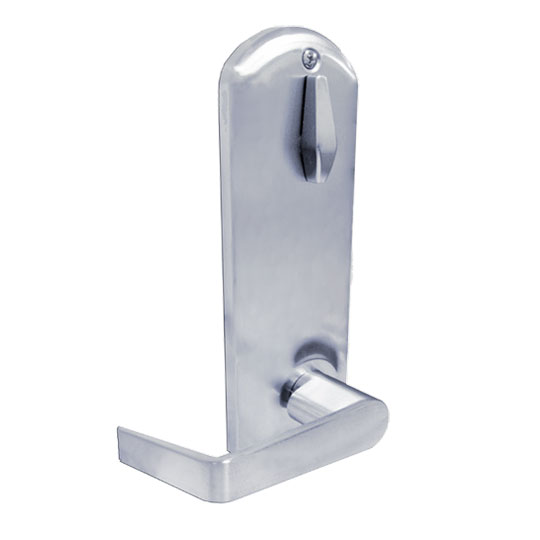

INDICATOR DEADBOLT, PASSAGE LEVER – Deadbolt thrown or retracted by emergency key in upper lock from outside or by thumbturn inside. Latch bolt is retracted by lever from either side. Lever retracts deadbolt and latch bolt simultaneously for immediate exit.

Conforms with ANSI A 156.12 Series 5000, Interconnected, Barrier Free, GRADE 2
Lifetime Warranty
UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
Solid brass 6-Pin “C” keyway cylinder, optional other keyways
Optional 4” or 5 ½” CTC Bore
Unique individual spring on the exterior and interior side of lever to prevent lever sag

Brand	Cal-Royal
Finishes	US26D (626) Satin Chrome
Lock Function	Single Locking Privacy w/ Occupancy Indicator
Lever Design	JHIL
Backset	2-3/4"
Latch	½” Throw. “UL” Listed for 3-hour doors
Deadbolt	1” Throw
Strike	Standard “T” strike furnished with lockset. 2 ¾” x 1 ⅛” square strike with deadbolt.
Usage	Medium Duty
ANSI/BHMA Standard	BHMA Certified ANSI A156.12 Grade 2
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	UL/cUL Listed for all functions up to 3 hours for “A” label single doors
Handing	Non-Handed
Door Thickness	1-3/8" to 1-3/4"
