SC-SE
SC-SE

Cal-Royal SC Series Mortise Lock with SE Escutcheon Lever Trim

Usually Ships: 2-3 Business Days
  • Extra Heavy-Duty ANSI Grade-1
  • Retrofits Schlage L9000 Series mortise locks
  • Select model/function below

Available Options:

Clear

Product Overview

Cal-Royal SC Series Mortise Lock with SE Wide Escutcheon Lever Trim, US26D/626 Satin Chrome Finish

Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes on the door

Models / Functions:

  • SC8010-SE Passage / ANSI Function F01 / Keyless
  • SC8050-SE Office/Entrance / ANSI  Function F04
  • SC8070-SE Classroom / ANSI  Function F05
  • SC8080-SE Storeroom / ANSI  Function F07
  • SC8440-SE Privacy w/ Deadbolt / ANSI  Function F19 / Keyless
  • SC8445-SE Privacy w/ Deadbolt, Coin Turn Outside and “OCCUPIED” Indicator / ANSI  Function F19B / Keyless

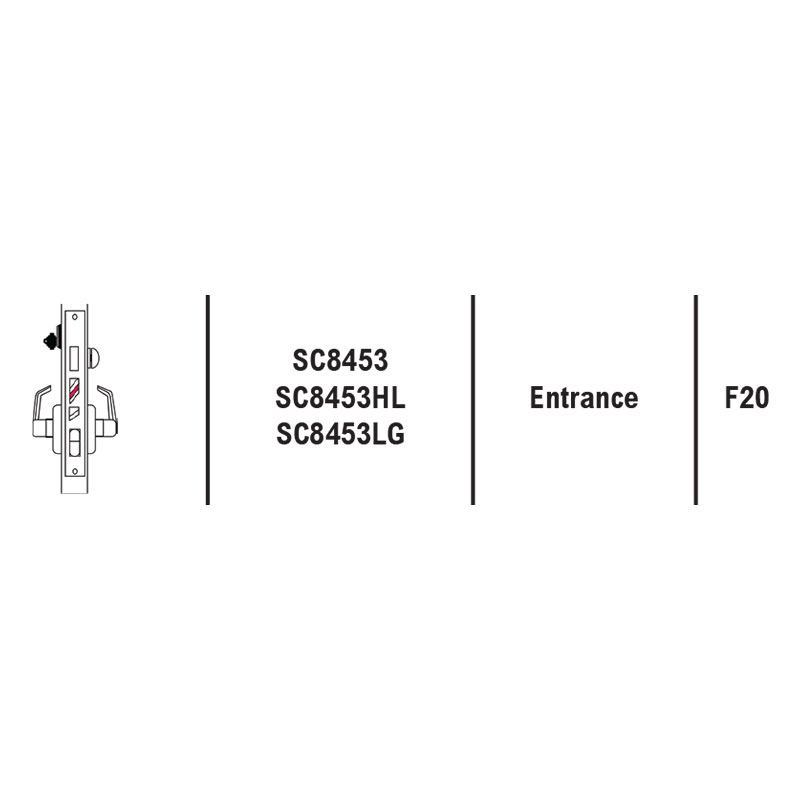

  • SC8453-SE Entrance w/ Deadbolt / ANSI  Function F20
  • SC8456-SE Corridor w/ Deadbolt / ANSI  Function F13
  • SC8473-SE Dormitory / Bedroom w/ Deadbolt / ANSI  Function F21

Features:

  • BHMA Certified Lifetime Warranty, GRADE 1
  • Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes on the door for sectional and escutcheon trims
  • Conforms to federal specification type 86; and to all dimensional and operational performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty
  • UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
  • Rust-proof heavy-duty 2 ¾” backset lock case
  • Individual spring to prevent lever sag, easily reversible
  • Forged brass lever handles exceed the requirements of ADA (American Disability Act)
  • Auxiliary latch bolt
  • Armored front plate conceals lock mounting screws
  • 1″ throw heavy-duty deadbolt with anti-saw hardened pins
  • Heavy duty ¾” latch bolt with anti-friction latch, easily reversible
  • Backset: 2 3/4″ backset
  • Easily Re-handed in the field
  • Keyed functions include mortise cylinder, Schlage C Keyway

codes

Brand

Model

SC8010 Passage, SC8050 Office/Entrance, SC8070 Classroom, SC8080 Storeroom, SC8440 Privacy Bedroom/Bath, SC8445 Privacy Bedroom/Bath w/ Indicator, SC8453 Entrance, SC8456 Corridor, SC8473 Dormitory / Bedroom
Finish

Satin Chrome
Finishes

US26D (626) Satin Chrome
ANSI Grade

Meets ANSI – A156.13, Series 1000, Grade 1 Standards
Usage

Heavy Duty
Fire Rating

UL Listed for "A" Label 3 Hour Fire Doors
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Latchbolt

Heavy duty ¾" latch bolt with anti-friction latch
Backset

2-3/4"
Strike

Brass, non-handed curved strike 4-7/8" x 1 1/4"
Handing

Handed – Field Reversible
Door Thickness

1-3/4"
Warranty

Limited Lifetime Warranty
