Product Overview

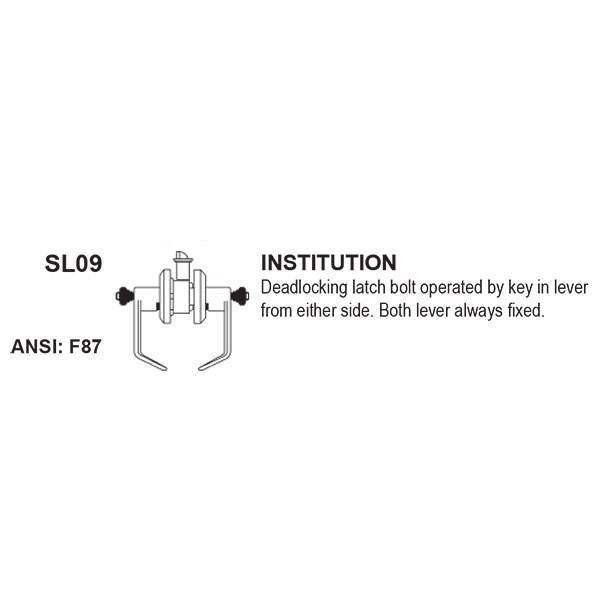

Cal-Royal Pioneer SL Series Cylindrical Lever Lock, SL09 Institution Function
ANSI Function F87 – Deadlocking latch bolt operated by key in lever from either side. Both lever always fixed.
- Optional thru-bolt installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Meets ADA requirements specially designed for Barrier-Free application
- Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements Exceeds 400,000 Cycles
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
| Brand | |
|---|---|
| Finishes | US26D (626) Satin Chrome |
| Lock Function | Institution / Asylum |
| Usage | Medium Duty |
| ANSI/BHMA Standard | Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 |
| Fire Rating | UL/cUL listed up to 3 Hours |
| Keyway | Schlage C Keyway |
| Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
| Backset | 2-3/4" |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Handing | Non-Handed |
| Door Thickness | 1-3/8" to 1-3/4" |
