Cal-Royal XP30 Passage Lever Set

$52.61

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • ANSI Function F75 – Passage
  • ADA compliant, 3-hour fire-rated

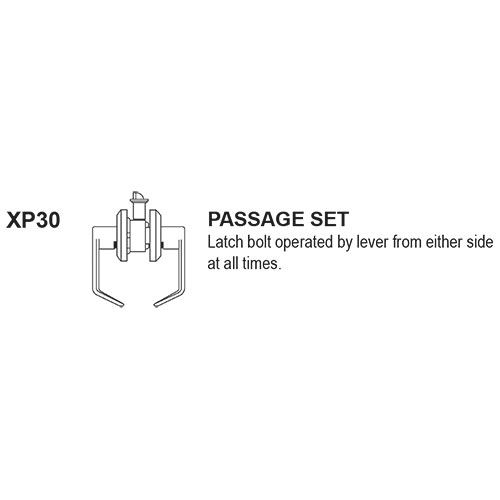

Cal-Royal Explorer XP Series Cylindrical Lever Lock, XP30 Passage Function

ANSI Function F75 – Latch bolt operated by lever from either side at all times.

  • Optional thru-bolt installation
  • Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
  • Meets ADA requirements specially designed for Barrier-Free application
  • Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements Exceeds 400,000 Cycles
  • For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings

codes

Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Passage

ANSI/BHMA Standard

Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2

Latch

1/2" throw – 1" x 2-1/4" square corner, packed with 1/8" filler for 1-1/8" width

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Fire Rating

UL/cUL listed up to 3 Hours

Usage

Medium Duty
