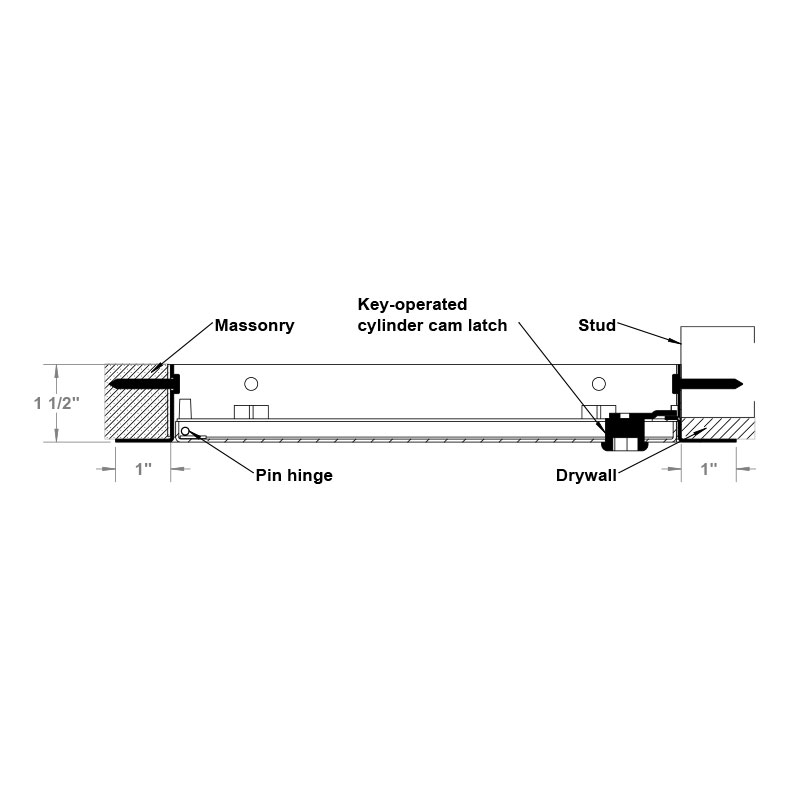

Cendrex AHD-10 Flush Universal Access Door with Exposed Flange, Key-Operated Cylinder Cam Latch, Pin Hinge

Usually Ships: 3-5 Business Days
  • For use in walls and ceilings
  • 16-gauge cold rolled steel
  • Key-operated cylinder cam latch

Available Options:

Cendrex AHD-10 Flush Universal Access Door with Exposed Flange, Key-Operated Cylinder Cam Latch, Pin Hinge

Designed for quick and easy installation on non-rated walls and ceilings. The key-operated cam latch ensures a higher level of security.

  • Material: 16-gauge cold rolled steel
  • Hinge: Hot rolled and stamped steel pin hinge. Hinge location: Hinges must be located on the second dimension (height)

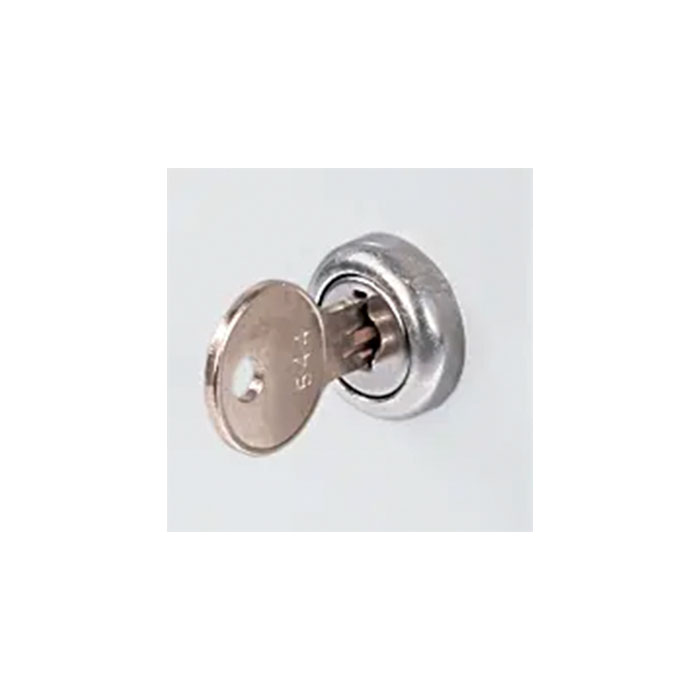

  • Locking mechanism: Key-operated cylinder cam latch
  • Flange: 1″ exposed flange
  • Frame: 1-1/2″ in depth
  • Rough opening: Door sizes + ¼ ” or + 6mm
  • Finish: High quality white powder coat primer
  • Packaging: Individually wrapped, 1 door per box
Brand

Size

12" x 12", 16" x 16", 18" x 18", 24" x 24"

Finish

White

Rough Opening Size

+ 1/4” or + 6 mm
