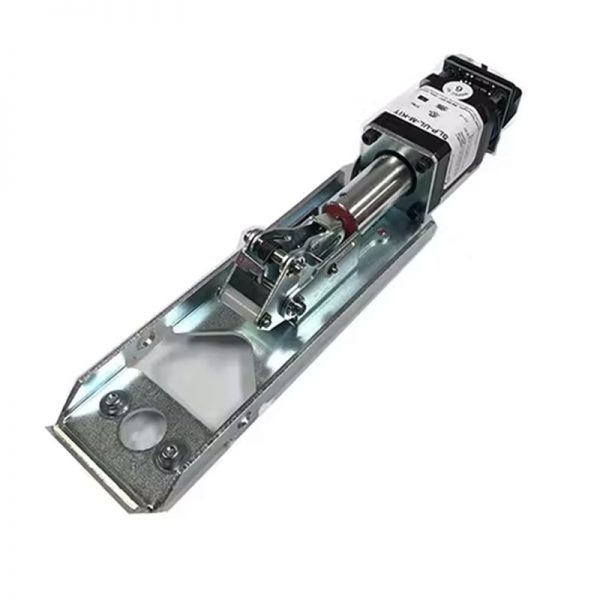

Command Access MLRK1-ARW Motorized Latch Retraction Kit for Arrow 1000 Series Exit Devices

Command Access MLRK1-ARW Motorized Latch Retraction Kit, for Arrow 1000 SeriesExit Devices (Field Installation)

The MLRK1-ARW is a cost-effective and straightforward way to upgrade your Arrow 1000 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty

The MLRK1-ARW is a practical and cost-effective way to convert a mechanical Arrow 1000 series
device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install
motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy
post-installation adjustment of the latch/latches. Last but not least, it features an updated MM4S
module with 2 different energy consumption settings from energy conscious to high torque to get
the tough jobs done!

• MM4S Smart Module: On-board diagnostics with audible feedback for adjustment and power issues
• Remote MM4S module for easy accessibility & servicing
• “PTS”: 5-second electronic adjustment for easy post-installation adjustment
• Electric dogging rated for continuous duty – Auto re-engage if push pad is pulled from dogged position
• Low Current Draw – Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire – Long wire runs provide the installer with the convenience of placing the Command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel
• 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
• Request-to-exit kit available
• UL Listed
• 3-Year “No Hassle” Warranty

Specifications:

• Voltage range – 24 to 28 VDC
• System protection – unit shutdown when voltage exceeds 28 VDC
• Standard – average current peak: 900MA, average current hold: 215MA
• High Torque – Average Current Peak: 2A, High Average Current Hold: 250mA
• PTS adjustment – approx. 1/4″
• Wire Run: 300′ with 18ga wire
• Cutdown details: 36” – All the way to push pad, 48” – All the way to push pad
