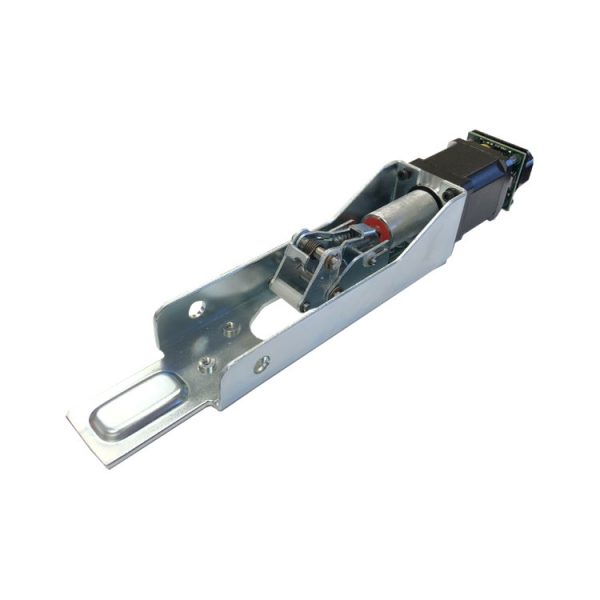

Command Access MLRK1-DOR Motorized Latch Retraction Kit for Dorma 9000 Series Exit Devices

Command Access MLRK1-DOR Motorized Latch Retraction Kit, for Dormakaba/Dorma 9000 Series Exit Devices (Field Installation)

The MLRK1-DOR is a cost-effective and straightforward way to upgrade your Dorma 9000 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

The MLRK1-DOR is a practical and cost-effective way to convert a mechanical Dorma series device to an electrified latch pullback device, while maintaining the UL listing. Our easy-to-install motor- driven kit installs in moments. It is equipped with PTS technology allowing for an easy post- installation adjustment of the latch/latches. Last but not least, it features an updated motor module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!

• Works with all Dormakaba/Dorma 9000 Series Devices
• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty – Auto re-engage if push pad is pulled from dogged position
• Low Current Draw – Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire – Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6” robust Molex Pigtail + 6’ Power lead to easily connect to power supply lead
• Request-to-exit kit available
• UL Listed
• 3-Year “No Hassle” Warranty

Specifications:

• Voltage range – 24 +/- 10%
• System protection – unit shutdown when voltage exceeds 28 VDC
• Standard – average current peak: 900MA, average current hold: 215MA
• High Torque – Average Current Peak: 2A, High Average Current Hold: 250mA
• PTS adjustment – approx. 1/4″
• Wire Run: 300′ with 18ga wire
• Cutdown details: 36” & 48” at least 1” of filler plate
