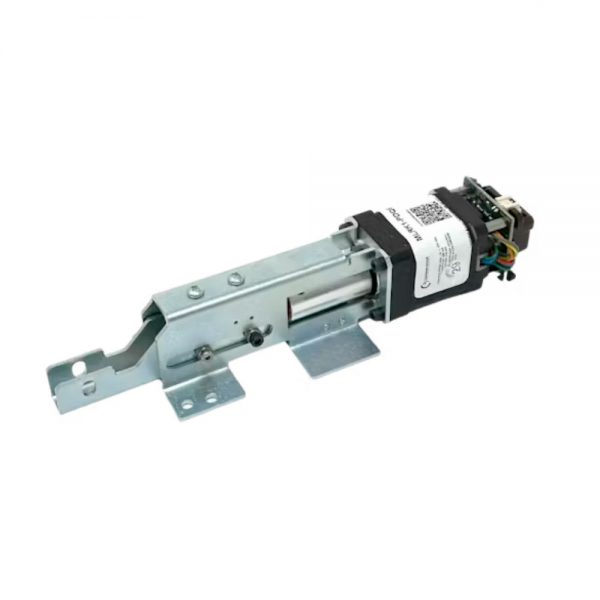

Command Access MLRK1-PDQ63 Motorized Latch Retraction Kit for PDQ 6300/6400 Series Exit Devices

Command Access MLRK1-PDQ63 Motorized Latch Retraction Kit, for PDQ 6300/6400 Series Exit Devices (Field Installation)

The MLRK1-PDQ63 is a robust, straightforward field-installable motorized latch retraction kit for PDQ 6300 series exit devices series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1-touch PTS “Push to Set” technology, making post-installation adjustments a breeze. An optional built-in REX switch is available on all units!

• Fast, Quite, Smooth & Strong!
• Patent pending Push to Set (PTS) Technology
• Next Generation MM5 Smart Module: Onboard diagnostics
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
• Electric dogging rated for continuous duty – Auto reengage if push pad is pulled from dogged position
• UL Listed
• 3-Year “No Hassle” Warranty

Specifications:

• Voltage Range – 24 TO 28 VDC
• System protection – unit shutdown when voltage exceeds 28 VDC
• Standard – average current peak: 900MA, average current hold: 215MA
• PTS adjustment – approx. 1/4″
• Wire Run: 300′ with 18ga wire
• Cutdown details: 36” – 2″, 48″ – 8″
• Built-in (REX) Request-to-Exit kit optional
