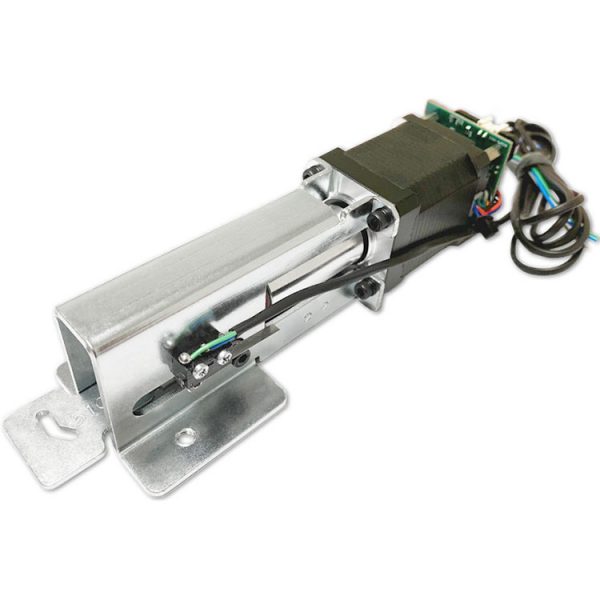

Command Access MLRK1-YAL6 Motorized Latch Retraction Kit for Accentra/Yale 6000 Series Exit Devices

Command Access MLRK1-YAL6 Motorized Latch Retraction Kit, for Accentra (Formerly Yale) 6000 Series Exit Devices (Field Installation)

The MLRK1-YAL6 is a cost-effective and straightforward way to upgrade your Accentra/Yale 6000 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

The MLRK1-YAL6 is a practical and cost-effective way to convert a mechanical Accentra/Yale 6000 series device to a motorized latch retraction device, while maintaining the listing. Our easy-to-install motor-driven kit installs in minutes & includes an optional built-in request to exit. It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the YAL6 features an updated MM module, energy conscious while still being capable of getting tough jobs done!

• Works with all Accentra (formerly Yale) 6000 Series devices
• Fast, Quite, Smooth & Strong!
• Patent pending Push to Set (PTS) Technology
• Next Generation MM4S Smart Module: Onboard diagnostics
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
• Electric dogging rated for continuous duty – Auto reengage if push pad is pulled from dogged position
• UL Listed
• 3-Year “No Hassle” Warranty

Specifications:

• Voltage Range – 24 TO 28 VDC
• System protection – unit shutdown when voltage exceeds 28 VDC
• Standard – average current peak: 900MA, average current hold: 215MA
• PTS adjustment – approx. 1/4″
• Wire Run: 300′ with 18ga wire
• Cutdown details: 36”/ 48” – 6.5” filler plate Needed
• Built-in (REX) Request-to-Exit kit optional
