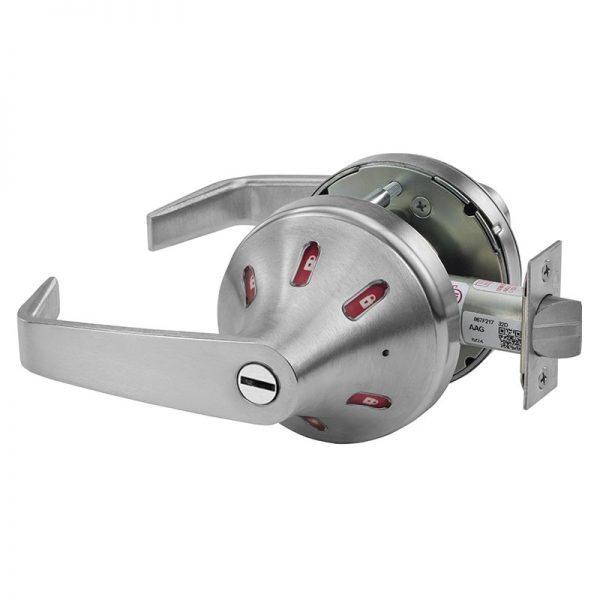

Corbin Russwin CLX3330-NVSL Extra Heavy Duty Privacy/Bedroom/Bathroom Visual Status Lever Lock with Indicator

Corbin Russwin CLX3330-NVSL Cylindrical Lever Lock with NVSL Trim, Privacy, Bedroom or Bathroom Function, N Design, VSL Trim Design – 2-3/4″ B.S.

The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability.

The CLX3300 Series cylindrical lock with status indicators, is the ultimate intersection of security and privacy. Engineered for easy installation in any space, it ensures instant visibility of the door’s lock status. Featuring status indicator windows for optimal visibility. Built on the robust CLX3300 Series lock body, it exceeds Grade 1 standards, making it ideal for high-traffic restrooms, classrooms, or rooms requiring increased privacy.

• ANSI/BHMA A156.2, Series 4000, Grade 1 certified
• UL-cUL listed for 3-hour fire doors and windstorm applications
• Exceeds 3,100 in-lb abusive locked lever torque with no entry while maintaining egress (2.6 times ANSI/BHMA A156.2 requirements)
• Certified above & beyond testing to withstand high volume traffic
• Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 1 cycle requirements without lever sag
• Florida Building Code Approved FL# 3067

Features

• Status indicators for outside or both sides of the door
• Ideal for new construction or retrofit applications using a standard bored lock door prep
• One-Motion egress for quick and safe exits
• Multiple indicator windows provides 180° visibility and clear sight lines from any angle
• Simplified non-handed installation allows for easy mounting on doors of any handing
• ADA Compliant levers
• Patented design

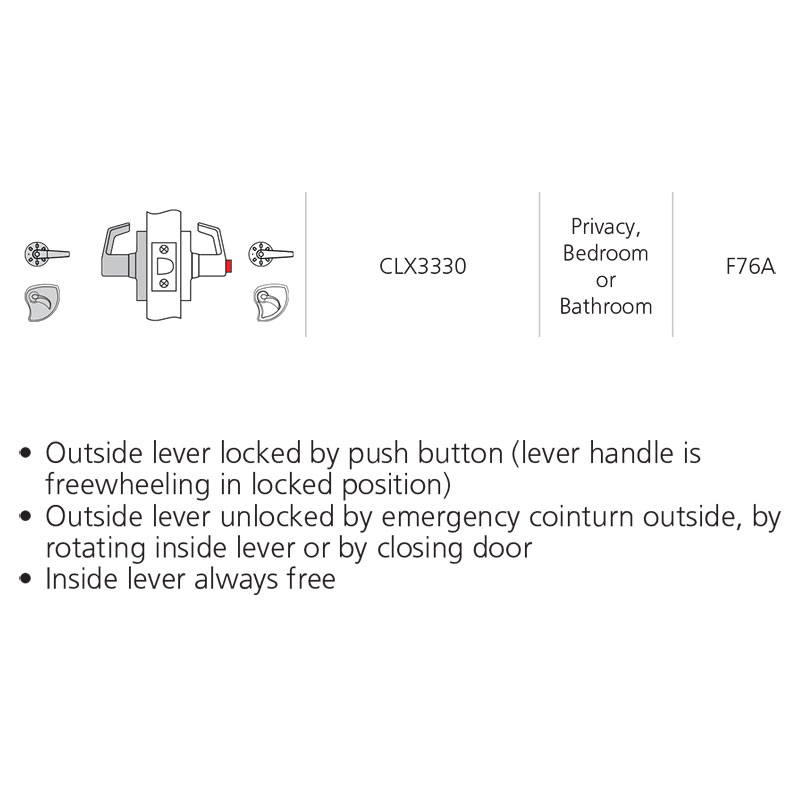

ANSI F76A Privacy, Bedroom, or Bathroom

• Outside lever locked by push button (lever handle is freewheeling in locked position)
• Outside lever unlocked by emergency cointurn outside, by rotating inside lever or by closing door
• Inside lever always free

Indicator Option Codes
10X Line indicator option codes are designed to convey color and side of door desired in one simple code. To order, specify option code.

• V30: Single Indicator Outside (Icons Only: Green/Red)
• V33: Double Indicator (Icons Only: Green/Red Outside – Green/Red Inside)
• V60: Single Indicator Outside (Icons Only: White/Red)
• V66: Double Indicator (Icons Only: White/Red Outside – White/Red Inside)

Applications

• Classrooms
• Restrooms
• Quiet rooms
• Nursing mother’s rooms
• Dressing rooms
