Corbin Russwin DC6210 A1 M54 Door Closer w/ Hold Open Arm

Usually Ships: 1-2 Business Days

Heavy-Duty, ANSI Certified Grade-1
Adjustable spring size 1-6
Regular, top jamb, or parallel arm mount

Available Options:

Finish

Clear

Quantity:

DC6210 A1 M54, DC6000 Series Cast Iron Door Closer with 688F77 Hold Open Arm

The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes.

A1 = Includes 688F77 hold open arm
M54 = Includes Sex nuts and bolts (SNB)
Meets ADA requirements in all applications
Replaces discontinued 100/110/120/2800 series door closers

Brand	Corbin Russwin
Finishes	689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 693 Black (Powder Coated), 696 Brass (Powder Coated)
Usage	Heavy Duty

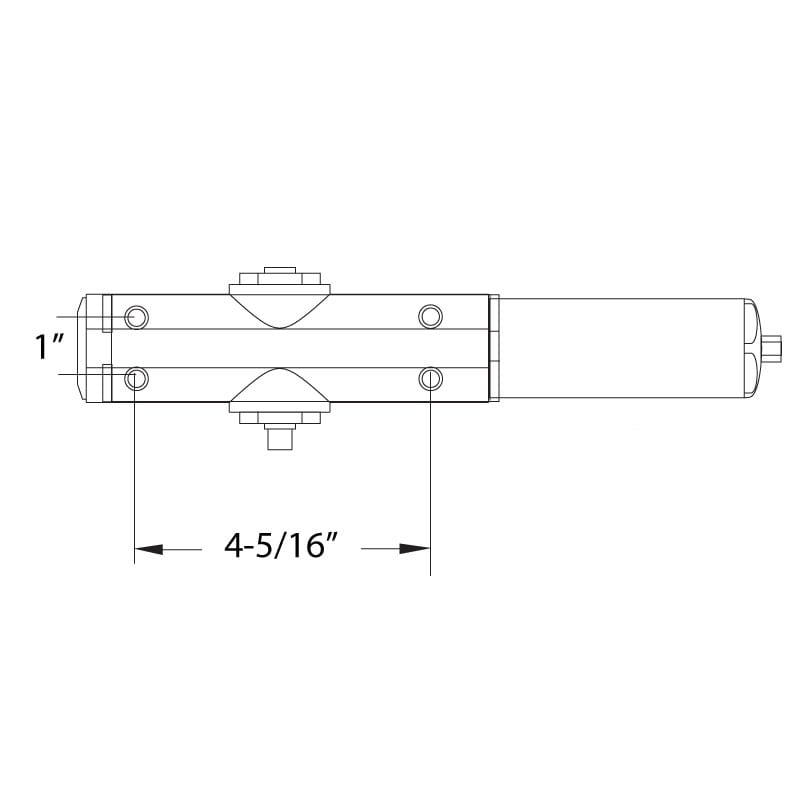

Templating (Hole Pattern)	1" x 4-5/16"
Mounting Options	Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
ANSI/BHMA Standard	ANSI/BHMA Grade 1 156.4 standards
Fire Rating	None
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Body Construction	Cast Iron Body
Fasteners	Self-drilling screws, sex nuts and bolts (SNBs)
Cover	Full Cover
Spring Size	Adjustable Spring Size 1-6
Handing	Non-Handed
Warranty	25 Year Limited
