Product Overview

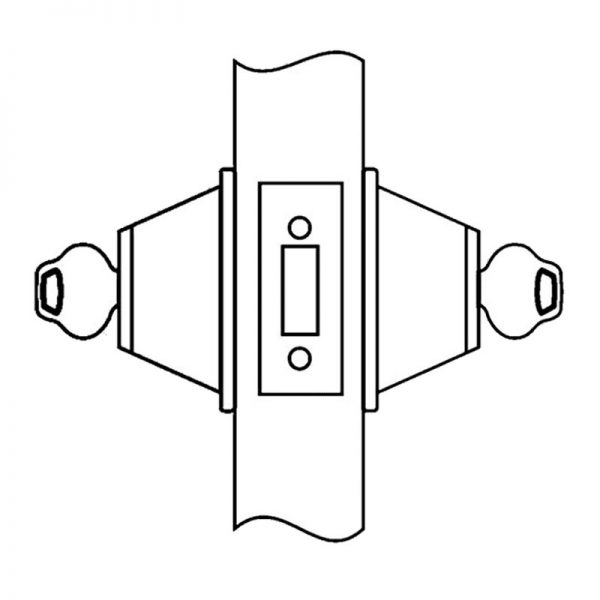

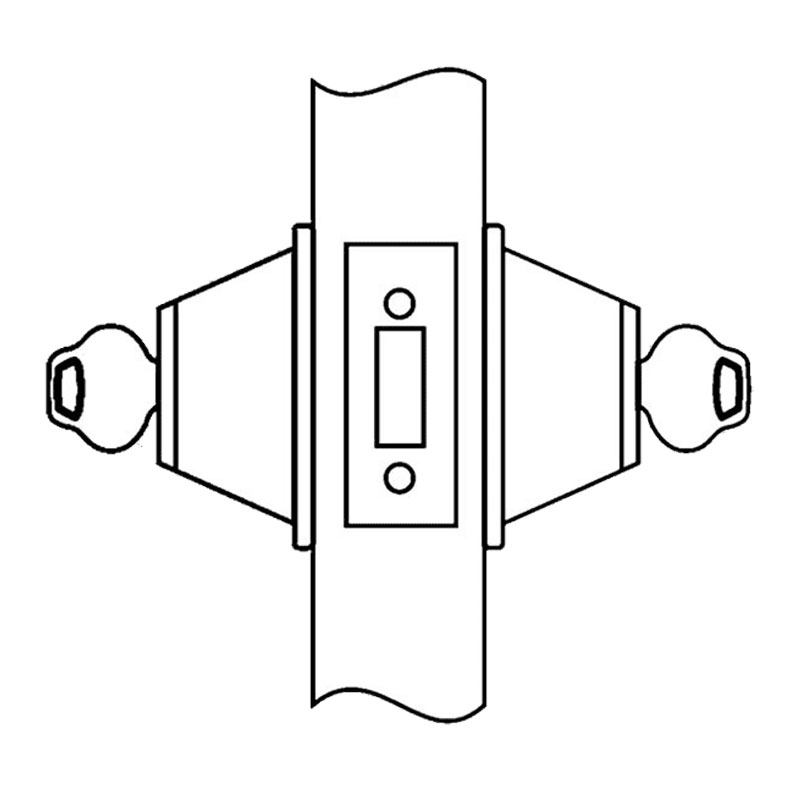

266.91Corbin Russwin DL3012 Double Cylinder Deadbolt, Grade-2, 2-3/4″ Backset
The DL3000 Series is a strong, reliable deadbolt for standard application
ANSI E0141 Double Cylinder Deadlock
- By key either side
Brand | |
---|---|
Finishes | BSP Black Suede Powder Coat, WSP White Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26 (625) Bright Chrome, US26D (626) Satin Chrome |
ANSI/BHMA Standard | A156.36 Certified Grade 2 |
Usage | Medium Duty |
ANSI Function | E0141 |
Deadbolt Type | Double Cylinder |
Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
Keyway | Corbin Russwin L4 Keyway |
Bolt | Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high |
Backset | 2-3/4" |
Strike | 1-1/8” x 2-3/4“ square corner |
Fire Rating | Fire Rated – UL10C – Positive Pressure |
