Product Overview

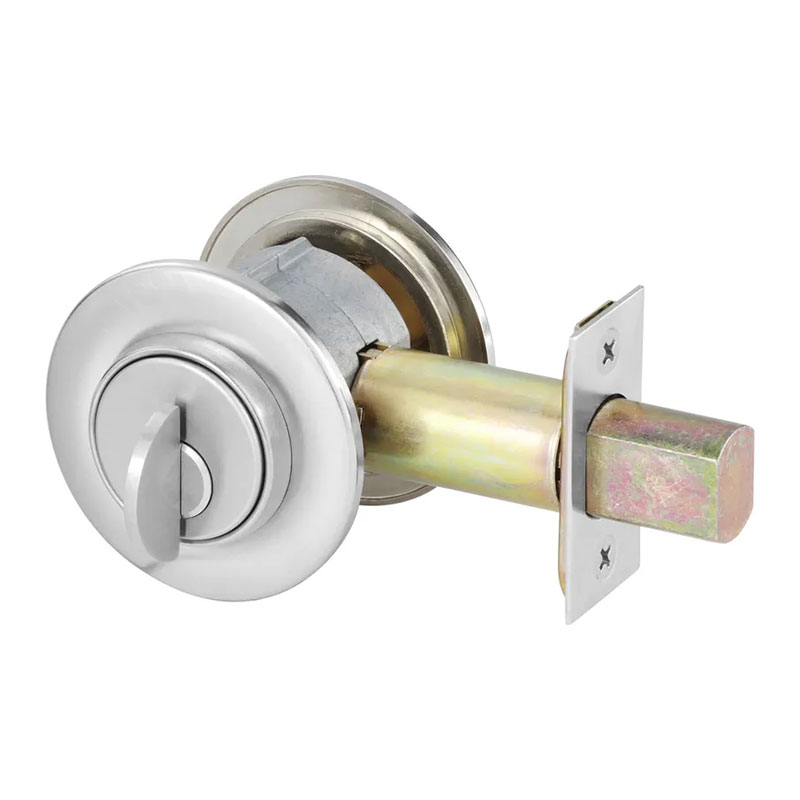

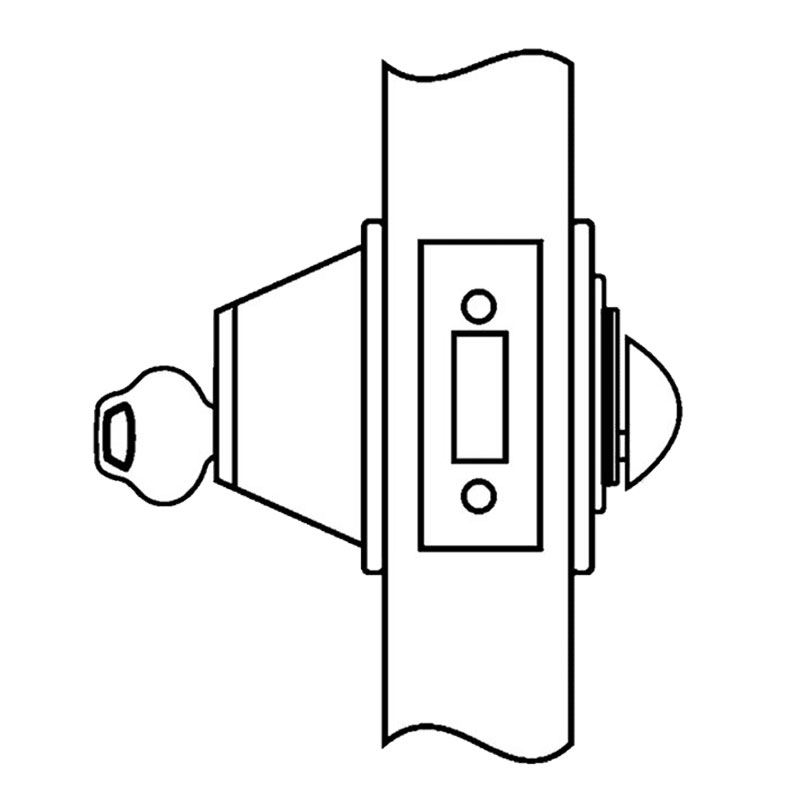

Corbin Russwin DL3013 CL6 Single Cylinder Deadbolt, 6-Pin LFIC Prep, Grade-2, 2-3/4″ Backset
The DL3000 Series is a strong, reliable deadbolt for standard application
ANSI E0151 Single Cylinder Deadlock
- By key outside and by thumbturn inside
| Brand | |
|---|---|
| Finishes | BSP Black Suede Powder Coat, WSP White Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26 (625) Bright Chrome, US26D (626) Satin Chrome |
| ANSI/BHMA Standard | A156.36 Certified Grade 2 |
| Usage | Medium Duty |
| ANSI Function | E0151 |
| Deadbolt Type | Single Cylinder |
| Cylinder | Prepped for (FSIC) Full Size Interchangeable Core (less core) |
| Bolt | Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high |
| Backset | 2-3/4" |
| Strike | 1-1/8” x 2-3/4“ square corner |
| Fire Rating | Fire Rated – UL10C – Positive Pressure |
