Product Overview

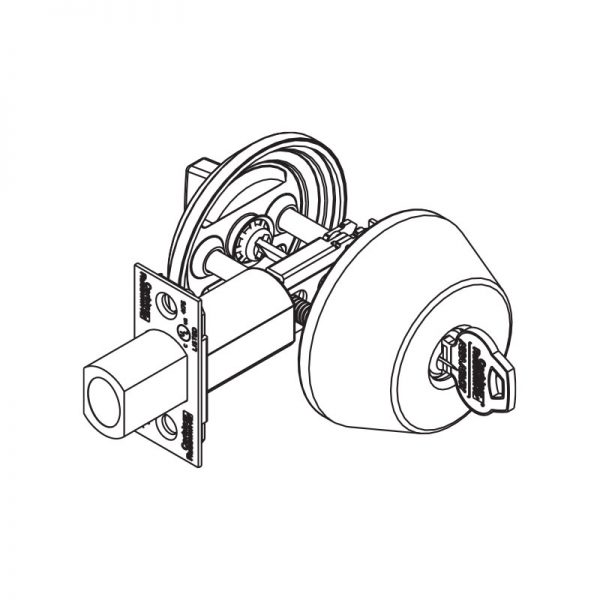

Corbin Russwin DL3213 Single Cylinder Deadbolt, 2-3/4″ Backset
Ideal for heavy-duty industrial and security applications, the DL3200 Series is a high-grade cylindrical deadbolt that is ANSI/BHMA Grade 1 certified.
ANSI E0151 Single Cylinder Deadlock
- By key outside and by thumbturn inside
Brand | |
---|---|
Finishes | BSP Black Suede Powder Coat, WSP White Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26 (625) Bright Chrome, US26D (626) Satin Chrome |
ANSI/BHMA Standard | A156.36 Certified Grade 1 |
Usage | Heavy Duty |
ANSI Function | E0151 |
Deadbolt Type | Single Cylinder |
Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
Keyway | Corbin Russwin L4 Keyway |
Bolt | 1" throw bolt, 1-1/8" x 2-1/4" square corner face plate |
Backset | 2-3/4" |
Strike | 1-1/8” x 2-3/4“ square corner |
Fire Rating | Fire Rated – UL10C – Positive Pressure |
Related Products

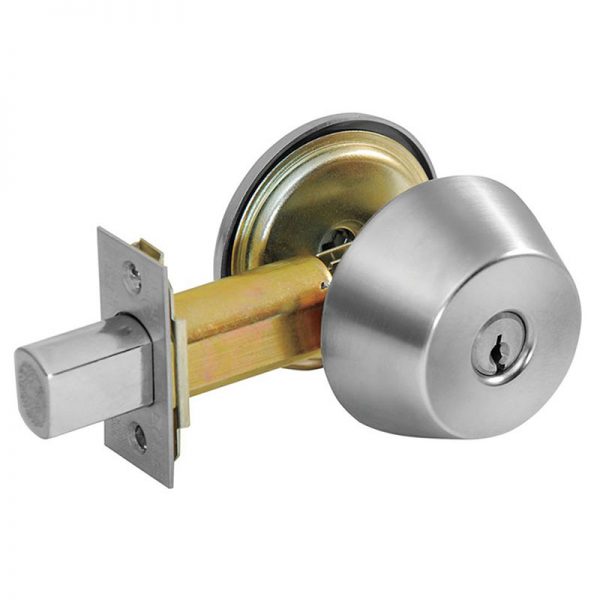

![](https://prod-trudoor-media.s3.us-west-2.amazonaws.com/wp-content/uploads/2024/07/21134840/DL2200-3200-626.jpg)
